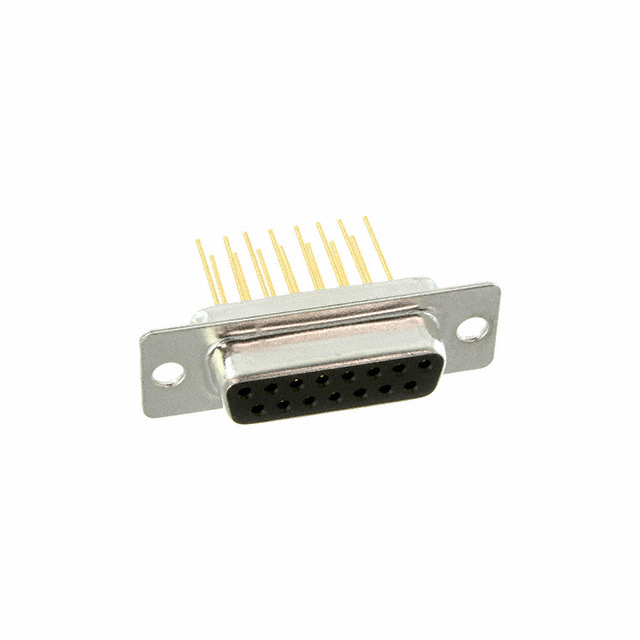

DA15-ST-2
Or copy the link below:
- Mfr.Part #
- DA15-ST-2
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 15POS VERT WW
- Stock
- 252
- In Stock ：
- 252
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- D-Sub Connector Assemblies
- Body Depth :
- 0.464 inch
- Current Rating (Amps) :
- 5A
- Contact Style :
- RND PIN-SKT
- PCB Contact Pattern :
- STAGGERED
- Factory Lead Time :
- 9 Weeks
- Mating Contact Pitch :
- 0.109 inch
- Material Flammability Rating :
- UL94 V-0
- Reliability :
- COMMERCIAL
- Number of Positions :
- 15
- Voltage - Rated :
- 600VDC
- Termination :
- Wire Wrap
- Mounting Option 1 :
- LOCKING
- Shell Size, Connector Layout :
- 2 DA A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Material :
- Brass
- Dielectric Withstanding Voltage :
- 1000VAC V
- Color :
- Black
- Dielectric Material :
- Thermoplastic, Glass Filled
- Number Of PCB Rows :
- 2
- Body Length or Diameter :
- 1.541 inch
- Shell Material, Finish :
- Steel, Nickel Plated
- Contact Finish Thickness :
- Flash
- Number of Rows :
- 2
- Total Number of Contacts :
- 15
- Insulation Resistance :
- 5000000000Ohm
- Flange Feature :
- Housing/Shell (4-40)
- Body Breadth :
- 0.494 inch
- Contact Pattern :
- STAGGERED
- Reference Standard :
- UL, CSA
- Insulation Material :
- GLASS FILLED POLYBUTYLENE TEREPHTHALATE
- Connector Style :
- D-Sub
- Operating Temperature :
- -55°C~125°C
- RoHS Status :
- ROHS3 Compliant
- Mounting Type :
- Through Hole
- Contact Finish :
- Gold
- Series :
- DST
- Packaging :
- Tray
- Connector Type :
- Receptacle, Female Sockets
- Datasheets
- DA15-ST-2
DA15-ST-2 Documents
DST Series D-Sub Receptacle, Female Sockets 15-Position Wire Wrap 2 DA A Through Hole Brass Gold Steel, Nickel Plated
DA15-ST-2 Overview
The connector type Receptacle, Female Sockets refers to the connector type.The device's mounting type is Through Hole.In order to package the product, a Tray case is used.It belongs to the DST Series of products.The device runs in -55°C~125°C Operating Temperature.
DA15-ST-2 Features
DST series
DA15-ST-2 Applications
There are a lot of Adam Tech
DA15-ST-2 D-Sub Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
