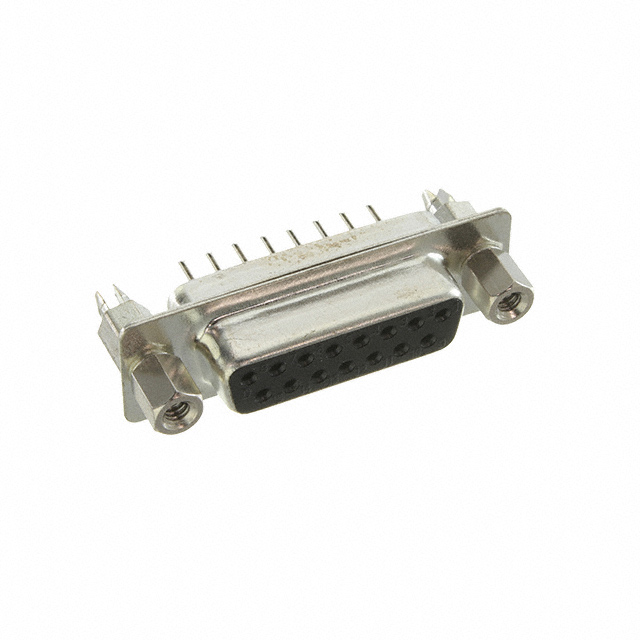

DA15-ST-1-BL-JS

Manufacturer :

Adam Tech

Product Category :

D-Sub Connector Assemblies

Operating Temperature :

-55°C~85°C

Additional Feature :

RoHS Compliant

Material Flammability Rating :

UL94 V-0

Connector Type :

Receptacle, Female Sockets

Connector Style :

D-Sub

Total Number of Contacts :

15

Mating Contact Pitch :

0.109 inch

Body Length or Diameter :

1.541 inch

Mounting Type :

Through Hole

Insulation Resistance :

5000000000Ohm

Number of Positions :

15

Contact Finish :

Gold

Shell Finish :

Tin

Gender :

FEMALE

Termination :

Solder

Body Breadth :

0.494 inch

Shell Material, Finish :

Steel, Tin Plated

Number of Rows :

2

Shell Size, Connector Layout :

2 DA A

Series :

DST

Reliability :

COMMERCIAL

RoHS Status :

ROHS3 Compliant

Contact Pattern :

STAGGERED

Contact Material :

Brass

Voltage - Rated :

250VAC

Number Of PCB Rows :

2

Lead Free :

Lead Free

Dielectric Withstanding Voltage :

1000VAC V

Dielectric Material :

Polybutylene Terephthalate (PBT), Glass Filled

Packaging :

Tray

Color :

Black

Contact Style :

RND PIN-SKT

Flange Feature :

Board Side (4-40); Mating Side, Female Screwlock (4-40)

Reference Standard :

UL, CSA

Feature :

Board Lock

Insulation Material :

GLASS FILLED POLYBUTYLENE TEREPHTHALATE

Current Rating (Amps) :

3A

Length - Termination :

0.189 inch

Factory Lead Time :

9 Weeks

Mounting Option 2 :

RIVET and JACKSCREW

PCB Contact Pattern :

STAGGERED

Contact Finish Thickness :

Flash

Moisture Sensitivity Level (MSL) :

1 (Unlimited)
