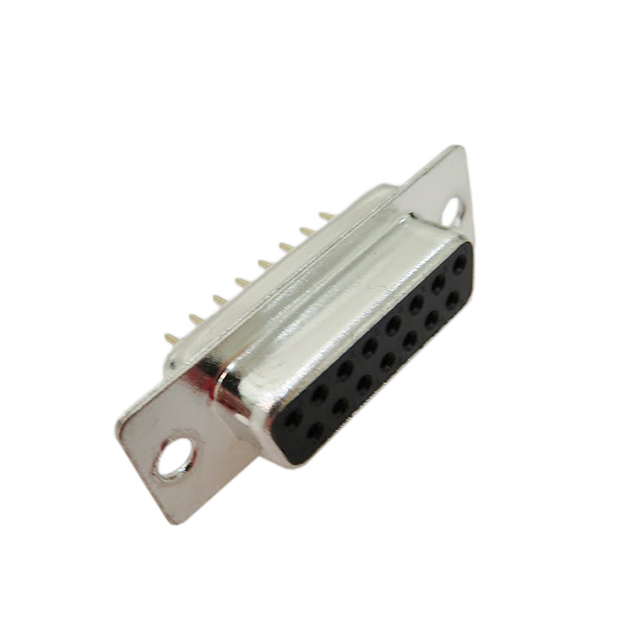

DA15-ST-1

Manufacturer :

Adam Tech

Product Category :

D-Sub Connector Assemblies

Operating Temperature :

-65°C~125°C

Mounting Type :

Through Hole

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insulation Material :

GLASS FILLED POLYBUTYLENE TEREPHTHALATE

Voltage - Rated :

250VAC

Total Number of Contacts :

15

Reliability :

COMMERCIAL

Body Length or Diameter :

1.541 inch

Body Breadth :

0.494 inch

PCB Contact Pattern :

STAGGERED

Reference Standard :

UL, CSA

Current Rating (Amps) :

3A

Material Flammability Rating :

UL94 V-0

Number of Positions :

15

Additional Feature :

RoHS Compliant

Series :

DST

Length - Termination :

0.189 inch

Mating Contact Pitch :

0.109 inch

Mounting Option 1 :

#4-40

Number of Rows :

2

Contact Material :

COPPER ALLOY

Connector Style :

D-Sub

Insulation Resistance :

5000000000Ohm

Factory Lead Time :

9 Weeks

Shell Finish :

Tin

Shell Material, Finish :

Steel, Tin Plated

Flange Feature :

Housing/Shell (Unthreaded)

Dielectric Withstanding Voltage :

1000VAC V

Color :

Black

Contact Style :

RND PIN-SKT

Packaging :

Tray

Contact Pattern :

STAGGERED

Connector Type :

Receptacle, Female Sockets

Contact Finish Thickness :

Flash

Gender :

FEMALE

Dielectric Material :

Polybutylene Terephthalate (PBT), Glass Filled

Number Of PCB Rows :

2

RoHS Status :

ROHS3 Compliant

Mounting Option 2 :

RIVET and JACKSCREW

Contact Finish :

Gold

Shell Size, Connector Layout :

2 DA A

Orientation :

Straight

Termination :

Solder
