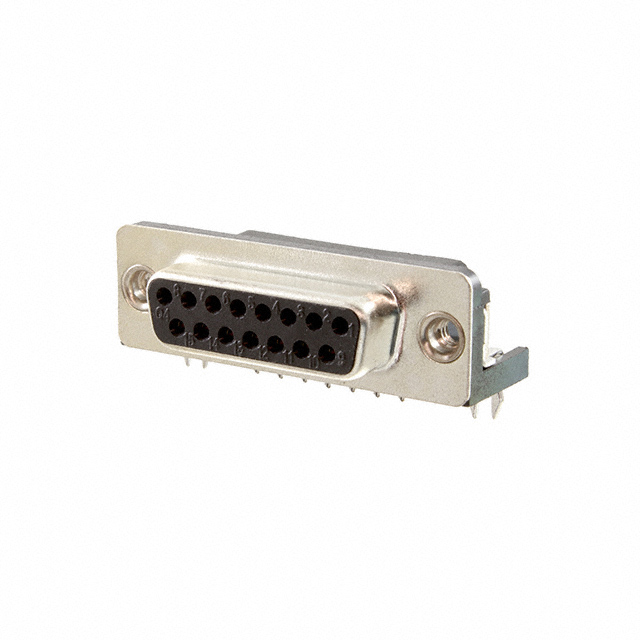

DA15-SL-24

Manufacturer :

Adam Tech

Product Category :

D-Sub Connector Assemblies

RoHS Status :

ROHS3 Compliant

Shell Finish :

Tin

Empty Shell :

No

Option :

GENERAL PURPOSE

Connector Style :

D-Sub

Mixed Contacts :

No

JESD-609 Code :

e4

Reliability :

COMMERCIAL

Material Flammability Rating :

UL94 V-0

Body Depth :

0.5 inch

Filter Feature :

No

Mounting Type :

Through Hole, Right Angle

PCB Contact Pattern :

STAGGERED

Contact Pattern :

STAGGERED

MIL Conformance :

No

UL Flammability Code :

94V-0

Factory Lead Time :

9 Weeks

Lead Free :

Lead Free

Reference Standard :

UL, CSA

Termination :

Solder

Plating Thickness :

FLASH inch

Dielectric Material :

Polybutylene Terephthalate (PBT), Glass Filled

Body Breadth :

0.494 inch

Additional Feature :

RoHS Compliant

Contact Style :

RND PIN-SKT

Number of Positions :

15

Orientation :

RIGHT ANGLE

DIN Conformance :

No

Current Rating (Amps) :

3A

Shell Size, Connector Layout :

2 DA A

Voltage - Rated :

250VAC

Operating Temperature :

-20°C~85°C

Number Of PCB Rows :

2

Insulation Resistance :

1000000000Ohm

Total Number of Contacts :

15

Backset Spacing :

0.319 (8.10mm)

Mounting Option 2 :

THREADED INSERT

Material :

Metal

Number of Rows :

2

Series :

DSL

Flange Feature :

Housing/Shell (4-40)

Contact Material :

COPPER ALLOY

Feature :

Board Lock

Dielectric Withstanding Voltage :

1000VAC V

Packaging :

Tray

IEC Conformance :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Form :

Stamped

Color :

Black

Contact Finish :

Gold

Mating Contact Pitch :

0.109 inch

Shell Material, Finish :

Steel, Tin Plated

Connector Type :

Receptacle, Female Sockets

Body Length or Diameter :

1.543 inch
