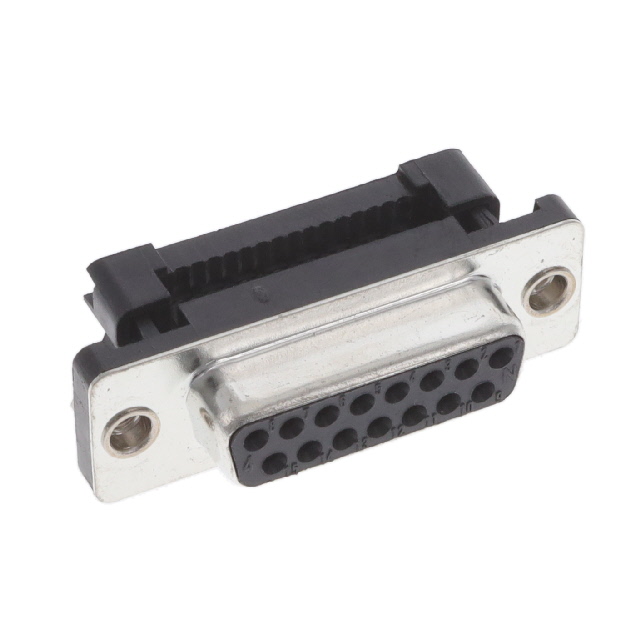

DA15-SF-M2
Or copy the link below:
- Mfr.Part #
- DA15-SF-M2
- Manufacturer
- Adam Tech
- Package / Case
- Metal
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 15POS IDC
- Stock
- 128
- In Stock ：
- 128
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- D-Sub Connector Assemblies
- Connector Style :
- D-Sub
- Contact Material :
- Phosphor Bronze
- Mating Contact Pitch :
- 0.109 inch
- Shell Size, Connector Layout :
- 2 DA A
- Insulation Resistance :
- 5000000000Ohm
- Reference Standard :
- UL, CSA
- Connector Type :
- Receptacle, Female Sockets
- Flange Feature :
- Housing/Shell (4-40)
- Packaging :
- Tray
- Contact Finish Thickness :
- Flash
- Dielectric Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Material Flammability Rating :
- UL94 V-0
- Total Number of Contacts :
- 15
- Contact Design :
- PREASSEM CONN
- Current Rating (Amps) :
- 5A
- Series :
- DSF
- Shell Material, Finish :
- Steel, Tin Plated
- Wire Gauge :
- 28-30 AWG
- RoHS Status :
- ROHS3 Compliant
- Termination :
- IDC, Ribbon Cable
- Package / Case :
- Metal
- Color :
- Black
- Number of Positions :
- 15
- Number of Rows :
- 2
- Contact Pattern :
- STAGGERED
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Option 2 :
- LOCKING
- Operating Temperature :
- -65°C~125°C
- Voltage - Rated :
- 250VAC
- Insulation Material :
- GLASS FILLED POLYBUTYLENE TEREPHTHALATE
- Lead Free :
- Lead Free
- Contact Style :
- RND PIN-SKT
- Contact Finish :
- Gold
- Factory Lead Time :
- 9 Weeks
- Mounting Type :
- Free Hanging (In-Line)
- Dielectric Withstanding Voltage :
- 1000VAC V
- Body Length or Diameter :
- 1.541 inch
- Reliability :
- COMMERCIAL
- Datasheets
- DA15-SF-M2
DSF Series D-Sub Receptacle, Female Sockets 15-Position IDC, Ribbon Cable 2 DA A Free Hanging (In-Line) Phosphor Bronze Gold Steel, Tin Plated
DA15-SF-M2 Overview
This product is packaged in a Receptacle, Female Sockets box.There is a Free Hanging (In-Line) mounting type for the device.This product is packaged in a case marked Tray.Product number DSF belongs to the DSF Series.Packaging with Metal contains a device.This device operates at a temperature of -65°C~125°C.
DA15-SF-M2 Features
DSF series
DA15-SF-M2 Applications
There are a lot of Adam Tech
DA15-SF-M2 D-Sub Connectors applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
