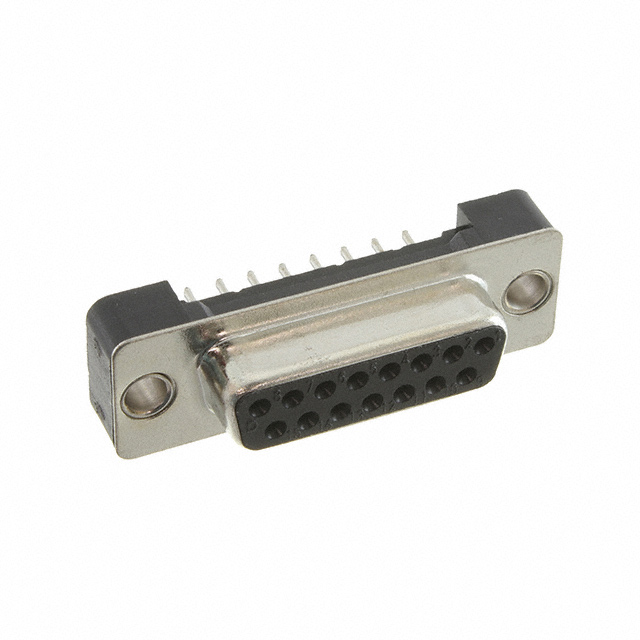

DA15-SA-M1
Or copy the link below:
- Mfr.Part #
- DA15-SA-M1
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 15POS VERT SLDR
- Stock
- 240
- In Stock ：
- 240
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- D-Sub Connector Assemblies
- RoHS Status :
- ROHS3 Compliant
- Connector Style :
- D-Sub
- Flange Feature :
- Housing/Shell (Unthreaded)
- Series :
- DSA
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Total Number of Contacts :
- 15
- Contact Style :
- RND PIN-SKT
- Mounting Option 1 :
- LOCKING
- Mating Contact Pitch :
- 0.109 inch
- Number of Rows :
- 2
- Length - Termination :
- 0.189 inch
- Termination :
- Solder
- Number of Positions :
- 15
- Mounting Type :
- Through Hole
- Packaging :
- Tray
- Dielectric Withstanding Voltage :
- 1000VAC V
- Voltage - Rated :
- 250VAC
- Shell Size, Connector Layout :
- 2 DA A
- Operating Temperature :
- -65°C~125°C
- Body Length or Diameter :
- 1.541 inch
- Insulation Material :
- GLASS FILLED POLYBUTYLENE TEREPHTHALATE
- Factory Lead Time :
- 9 Weeks
- Material Flammability Rating :
- UL94 V-0
- Reference Standard :
- UL
- Connector Type :
- Receptacle, Female Sockets
- Contact Pattern :
- STAGGERED
- Insulation Resistance :
- 5000000000Ohm
- Contact Finish :
- Gold
- Body Breadth :
- 0.494 inch
- Reliability :
- COMMERCIAL
- Contact Material :
- COPPER ALLOY
- Contact Finish Thickness :
- Flash
- Mounting Option 2 :
- JACKSCREW
- Current Rating (Amps) :
- 1A
- Color :
- Black
- Shell Material, Finish :
- Steel
- Dielectric Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Datasheets
- DA15-SA-M1
DA15-SA-M1 Documents
DSA Series D-Sub Receptacle, Female Sockets 15-Position Solder 2 DA A Through Hole Copper Alloy Gold Steel
DA15-SA-M1 Overview
A Receptacle, Female Sockets package is included with it.Through Hole indicates that the device is mounted.An Tray case is utilized for packaging the product.The product is a part of the DSA Series.Operating temperature is set to -65°C~125°C.
DA15-SA-M1 Features
DSA series
DA15-SA-M1 Applications
There are a lot of Adam Tech
DA15-SA-M1 D-Sub Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
