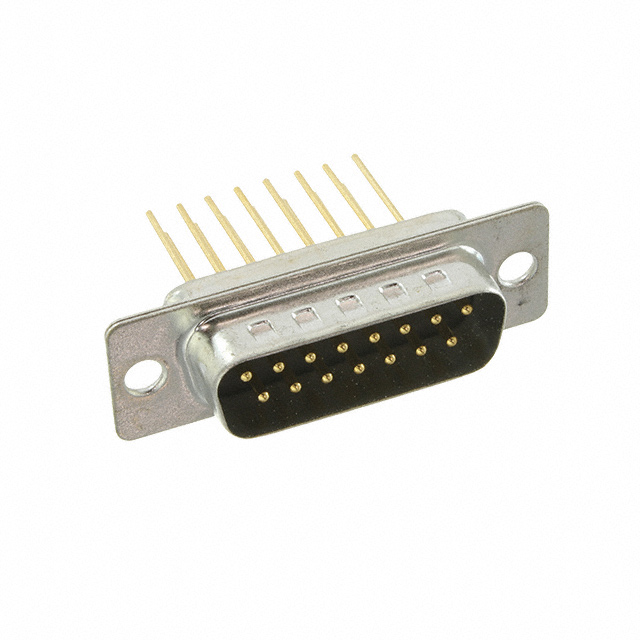

DA15-PT-2

Manufacturer :

Adam Tech

Product Category :

D-Sub Connector Assemblies

Packaging :

Tray

Mounting Option 2 :

BOARDLOCK

Dielectric Material :

Thermoplastic, Glass Filled

RoHS Status :

ROHS3 Compliant

Contact Finish Thickness :

Flash

Mounting Option 1 :

LOCKING

Insulation Resistance :

5000000000Ohm

Reliability :

COMMERCIAL

Body Breadth :

0.494 inch

Factory Lead Time :

9 Weeks

Color :

Black

Series :

DPT

Mounting Type :

Through Hole

Contact Material :

Brass

Shell Material, Finish :

Steel, Nickel Plated

Insulation Material :

GLASS FILLED POLYBUTYLENE TEREPHTHALATE

Number Of PCB Rows :

2

Reference Standard :

UL, CSA

Current Rating (Amps) :

5A

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Feature :

Grounding Indents

Operating Temperature :

-55°C~125°C

PCB Contact Pattern :

STAGGERED

Body Depth :

0.464 inch

Connector Style :

D-Sub

Dielectric Withstanding Voltage :

1000VAC V

Body Length or Diameter :

1.541 inch

Termination :

Wire Wrap

Contact Pattern :

STAGGERED

Number of Positions :

15

Voltage - Rated :

600VDC

Flange Feature :

Housing/Shell (4-40)

Number of Rows :

2

Total Number of Contacts :

15

Contact Finish :

Gold

Contact Style :

RND PIN-SKT

Shell Size, Connector Layout :

2 DA A

Material Flammability Rating :

UL94 V-0

Connector Type :

Plug, Male Pins

Mating Contact Pitch :

0.109 inch
