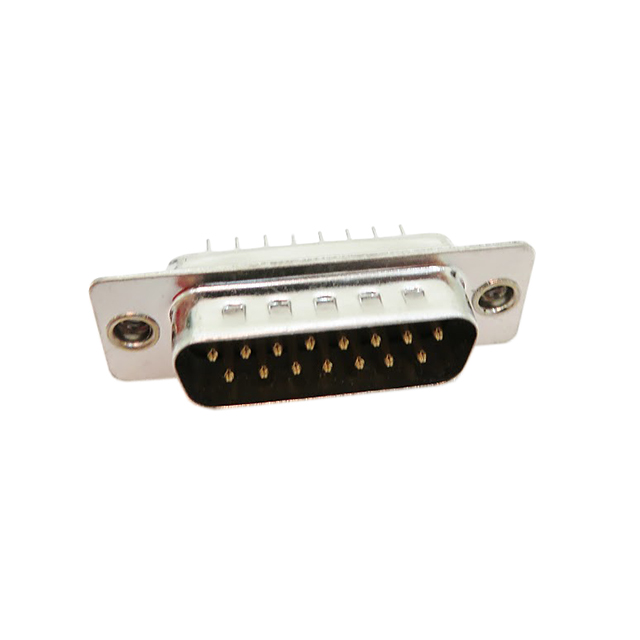

DA15-PT-1-SL

Manufacturer :

Adam Tech

Product Category :

D-Sub Connector Assemblies

Connector Style :

D-Sub

Voltage - Rated :

250VAC

ECCN Code :

EAR99

Material Flammability Rating :

UL94 V-0

Contact Style :

RND PIN-SKT

HTS Code :

8536.69.40.30

Contact Finish :

Gold

Insulation Resistance :

5000000000Ohm

Shell Finish :

Tin

Mounting Option 2 :

CLINCH NUT

Dielectric Withstanding Voltage :

1000VAC V

Mating Contact Pitch :

0.109 inch

Body Length or Diameter :

1.541 inch

Factory Lead Time :

9 Weeks

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Pattern :

STAGGERED

Connector Type :

Plug, Male Pins

Feature :

Grounding Indents

MIL Conformance :

yes

Reliability :

COMMERCIAL

JESD-609 Code :

e4

Number of Rows :

2

Current Rating (Amps) :

5A

Flange Feature :

Board Side (4-40)

PCB Contact Pattern :

STAGGERED

Number of Positions :

15

Mounting Type :

Through Hole

Shell Size, Connector Layout :

2 DA A

Termination :

Solder

Shell Material, Finish :

Steel, Tin Plated

Lead Free :

Lead Free

RoHS Status :

ROHS3 Compliant

Color :

Black

Reference Standard :

UL, CSA

Number Of PCB Rows :

2

Body Breadth :

0.494 inch

Contact Finish Thickness :

Flash

Series :

DPT

Operating Temperature :

-65°C~125°C

Total Number of Contacts :

15

Body Depth :

0.464 inch

Packaging :

Tray

Insulation Material :

GLASS FILLED POLYBUTYLENE TEREPHTHALATE

Length - Termination :

0.189 inch

Body/Shell Style :

Receptacle

Dielectric Material :

Polybutylene Terephthalate (PBT), Glass Filled

Contact Material :

Phosphor Bronze
