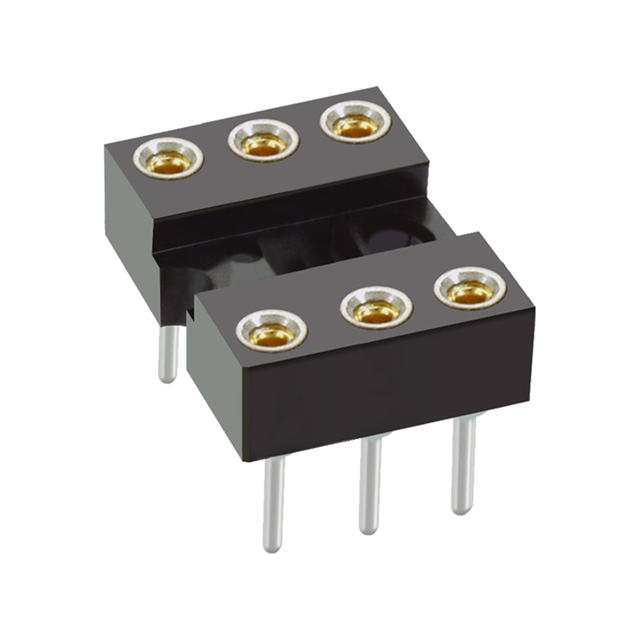

D2806-42
Or copy the link below:
- Mfr.Part #
- D2806-42
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN IC DIP SOCKET 6POS GOLD
- Stock
- 38,058
- In Stock ：
- 38,058
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- IC Sockets
- Factory Lead Time :
- 16 Weeks
- Dielectric Withstanding Voltage :
- 1400VAC V
- Insulation Resistance :
- 1GOhm
- Published :
- 2011
- Number of Rows :
- 2
- Packaging :
- Tube
- Mounting Type :
- Through Hole
- Number of Positions or Pins (Grid) :
- 6 (2 x 3)
- Mount :
- Through Hole
- Flammability Rating :
- UL94 V-0
- Pbfree Code :
- yes
- Depth :
- 10.02mm
- Termination :
- Solder
- Additional Feature :
- STANDARD: UL 94V-0
- Pitch - Mating :
- 0.100 2.54mm
- Body Breadth :
- 0.394 inch
- Contact Finish - Post :
- Tin
- Contact Style :
- RND PIN-SKT
- Feature :
- Open Frame
- REACH SVHC :
- No SVHC
- Operating Temperature :
- -55°C~125°C
- Contact Resistance :
- 10MOhm
- Contact Material - Post :
- Brass
- Radiation Hardening :
- No
- ECCN Code :
- EAR99
- Housing Material :
- Plastic
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Termination Post Length :
- 0.126 3.20mm
- Series :
- D2
- Material Flammability Rating :
- UL94 V-0
- Type :
- DIP, 0.3 (7.62mm) Row Spacing
- JESD-609 Code :
- e3
- Pitch - Post :
- 0.100 2.54mm
- Contact Finish Thickness - Post :
- 196.9μin 5.00μm
- Voltage - Rated DC :
- 150V
- Color :
- Black
- Voltage - Rated AC :
- 100V
- Contact Finish - Mating :
- Gold
- Contact Material :
- Copper
- RoHS Status :
- ROHS3 Compliant
- Width :
- 10.02mm
- Contact Material - Mating :
- BERYLLIUM COPPER
- Contact Finish Thickness - Mating :
- Flash
- Current Rating :
- 1A
- Number of Contacts :
- 6
- Orientation :
- Straight
- Connector Type :
- DIP
- Row Spacing :
- 7.62 mm
- Length :
- 7.6mm
- Lead Length :
- 3.2004mm
- Datasheets
- D2806-42
