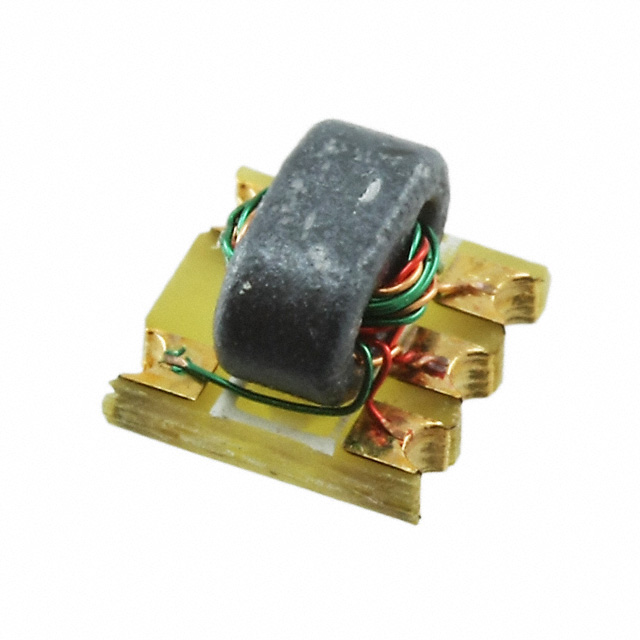

CX2045LNL

Manufacturer :

Pulse Electronics

Product Category :

Balun

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Package / Case :

Nonstandard SMD

Operating Temp Range :

-40C to 85C

Operating Frequency :

3MHZ TO 300MHZ(Hz)

Product Category :

Audio Transformers / Signal Transformers

Width :

3.81mm

Frequency :

1.5GHz

Min Operating Temperature :

-40°C

Frequency Range :

3MHz~300MHz

Product Length (mm) :

3.81(mm)

Physical Dimension :

L3.81XB3.81XH2.79 (mm)

Manufacturer :

Pulse

Maximum Operating Temperature :

+ 85 C

Turns Ratio - Primary:Secondary :

1:1.414

Mounting :

Surface Mount

Published :

2010

Application :

Wideband

Additional Feature :

IMPEDANCE RATIO IS 1:2CT; HEIGHT DIM INCLUDES TERMINALS ALSO

Transformer Type :

RF TRANSFORMER

Reach Compliance Code :

Compliant

Length :

3.81mm

Product :

RF

Operating Temperature :

-40 to 85 °C

Turns Ratio :

1:1.414

Factory Lead Time :

9 Weeks

Mounting Feature :

Surface Mount

Max Operating Temperature :

85°C

Type :

SMT Transformers

Product Type :

Audio and Signal Transformers

Surface Mount :

yes

Packing Method :

Tray

Termination Style :

SMD/SMT

Impedance - Unbalanced/Balanced :

1:2

Insertion Loss (Max) :

0.8dB

Mount :

Surface Mount

Product Height (mm) :

2.79(mm)

Packaging :

Tray

Minimum Operating Temperature :

- 40 C

ECCN Code :

EAR99

Mounting Style :

Surface Mount

RoHS Status :

RoHS Compliant

Pin Count :

5

Brand :

Pulse Electronics

Subcategory :

Transformers

Product Status :

Active

Height :

2.79mm

Series :

-

RoHS :

Details

Number of Channels :

Single

Radiation Hardening :

No

Package :

Tray

Mounting Type :

Surface Mount

Product Depth (mm) :

3.81(mm)

Return Loss (Min) :

-

Phase Difference :

-

Insertion Loss :

1(dB)
