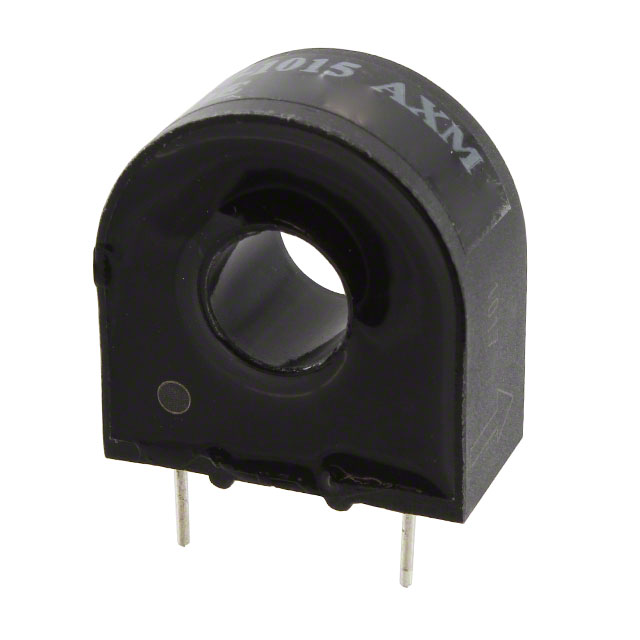

CST-1015
Or copy the link below:
- Mfr.Part #
- CST-1015
- Manufacturer
- Triad Magnetics
- Package / Case
- Datasheet
- Download
- Description
- CURR SENSE XFMR 15A T/H
- Stock
- 372
- In Stock ：
- 372
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Triad Magnetics
- Product Category :
- Current Sense Transformers
- Current Ratio :
- 1000:1
- Frequency :
- 50Hz
- Current Rating :
- 15A
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Primary Current :
- 15A
- Turns Ratio - Primary:Secondary :
- 1:1
- Mounting Type :
- Through Hole
- Lead Free :
- Lead Free
- Size / Dimension :
- 0.925Lx0.472W 23.50mmx12.00mm
- Length :
- 23.5mm
- Series :
- CST
- Width :
- 12mm
- Approval Agency :
- UL
- Current Rating (Amps) :
- 15A
- Input Current :
- 15A
- Height Seated (Max) :
- 0.976 24.80mm
- REACH SVHC :
- Unknown
- Weight :
- 0.044lb 19.96g
- Termination Style :
- PC Pin
- Termination :
- Radial
- Frequency Range :
- 50/60Hz
- RoHS Status :
- ROHS3 Compliant
- Power Rating :
- 23mW
- Published :
- 2014
- Type :
- Non-Invasive (Solid Core)
- Height :
- 24.8mm
- Mount :
- PCB
- Factory Lead Time :
- 17 Weeks
- DC Resistance (DCR) :
- 40Ohm
- Packaging :
- Bulk
- Datasheets
- CST-1015
