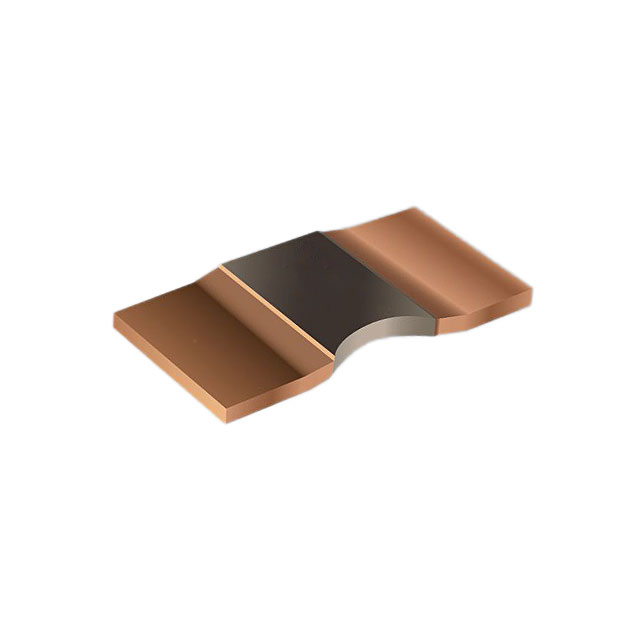

CSS2H-5930R-L200F

Manufacturer :

Bourns, Inc.

Product Category :

Chip Resistor - Surface Mount

Technology :

Metal Element

Product Width :

7.75 mm

Composition :

Metal Element

RoHS :

Details

Tolerance :

±1%

Operating Temperature :

-55°C ~ 170°C

Product Category :

Current Sense Resistors - SMD

Height - Seated (Max) :

0.102" (2.60mm)

Package / Case :

3920 (1052 Metric)

Brand :

Bourns

Termination :

2 Terminal

Power Rating :

15 W

Termination Style :

SMD/SMT

Application :

Current Sense

Height :

2.5 mm

Failure Rate :

-

Maximum Operating Temperature :

+ 170 C

Temperature Coefficient :

±50ppm/°C

Qualification :

AEC-Q200

Size / Dimension :

0.394" L x 0.205" W (10.00mm x 5.20mm)

Manufacturer :

Bourns

Supplier Device Package :

3920

Power (Watts) :

10W

Mounting Style :

PCB Mount

Minimum Operating Temperature :

- 55 C

Ratings :

AEC-Q200

Length :

10 mm

Series :

CSS2H-5930

Number of Terminations :

2

Features :

Automotive AEC-Q200, Current Sense

Product Status :

Active

Product Type :

Current Sense Resistors

Subcategory :

Resistors

Product Length :

15 mm

Resistance Tolerance :

± 1%

Width :

5.2 mm

Resistance :

0.2 mOhms

Packaging :

Cut Tape

Package :

Tape and Reel (TR)
