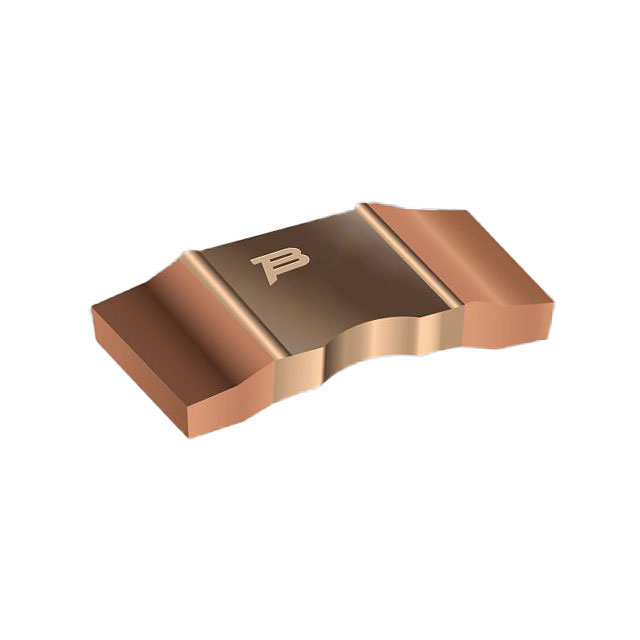

CSS2H-3920K-2L50F

Manufacturer :

Bourns, Inc.

Product Category :

Chip Resistor - Surface Mount

Length :

10 mm

Supplier Device Package :

3920

Tolerance :

±1%

Package :

Tape and Reel (TR)

Subcategory :

Resistors

Mounting Style :

PCB Mount

Operating Temperature :

-55°C ~ 170°C

Tradename :

CSS

Termination Style :

SMD/SMT

Temperature Coefficient :

±75ppm/°C

Product Type :

Current Sense Resistors

Application :

Current Sense

Technology :

Metal Element

Brand :

Bourns

Failure Rate :

-

Power (Watts) :

3.5W

Width :

5.2 mm

Height :

1.04 mm

Product Category :

Current Sense Resistors - SMD

Number of Terminations :

2

Height - Seated (Max) :

0.055" (1.40mm)

Termination :

2 Terminal

Ratings :

AEC-Q200

Product Status :

Active

Power Rating :

5 W

Package / Case :

3920 (1052 Metric)

RoHS :

Details

Maximum Operating Temperature :

+ 170 C

Manufacturer :

Bourns

Minimum Operating Temperature :

- 55 C

Series :

CSS2H-3920

Composition :

Metal Element

Features :

Automotive AEC-Q200, Current Sense, Moisture Resistant

Size / Dimension :

0.394" L x 0.205" W (10.00mm x 5.20mm)

Resistance :

2.5 MOhms
