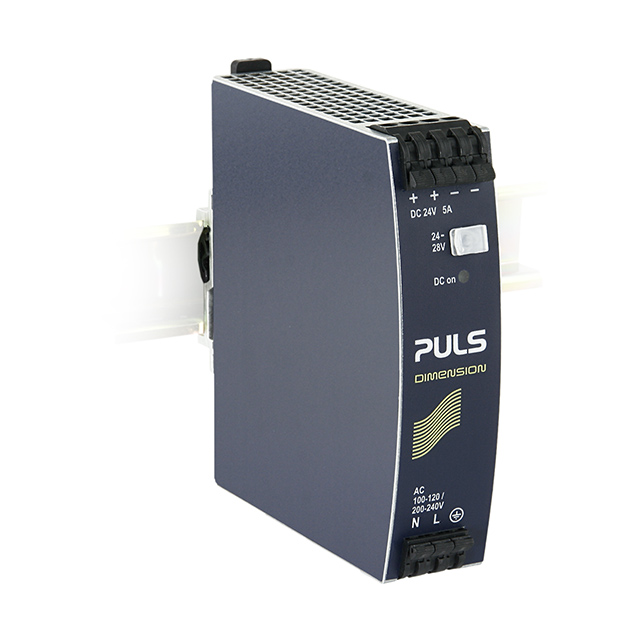

CS5.241-S1

Manufacturer :

PULS

Product Category :

Terminal Position :

UNSPECIFIED

Number of Terminations :

8

Terminal Form :

UNSPECIFIED

Moisture Sensitivity Level (MSL) :

Not Applicable

Factory Lead Time :

2 Weeks

Input Voltage-Nom :

100V

Applications :

ITE (Commercial)

Number of Outputs :

1

Size / Dimension :

4.61Lx1.26W x 4.88 H 117.0mmx32.0mmx124.0mm

Power (Watts) :

120W

Series :

DIMENSION C (120W)

Voltage - Input :

100V~120VAC 200V~240VAC

Pbfree Code :

yes

Feature :

Adjustable Output, Load Sharing

Number of Functions :

1

Type :

Enclosed

Approval Agency :

CB, CE, cULus, cURus

Reach Compliance Code :

not_compliant

JESD-30 Code :

R-PXMA-X8

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Voltage - Isolation :

500V

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Voltage - Output 1 :

24V

Surface Mount :

No

RoHS Status :

RoHS Compliant

Operating Temperature :

-25°C~70°C With Derating

Output Voltage :

24V

Current - Output (Max) :

5A

Mounting Type :

DIN Rail

Efficiency :

90.2%

Trim/Adjustable Output :

yes
