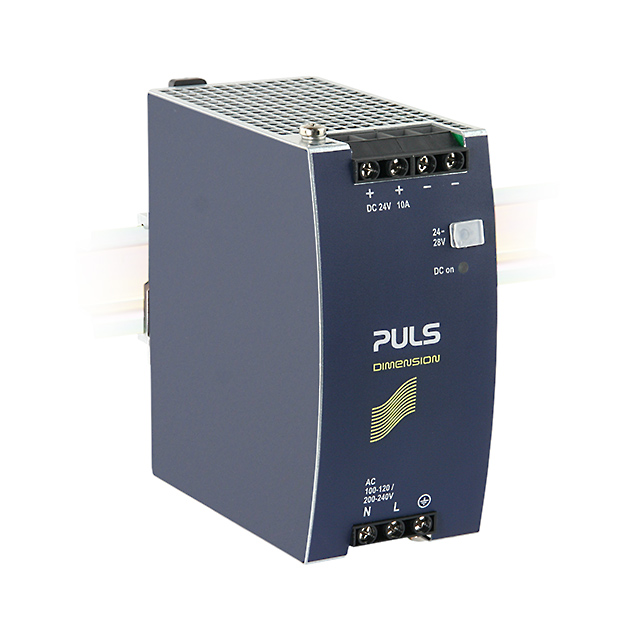

CS10.241

Manufacturer :

PULS

Product Category :

Min Input Voltage :

100V

Max Input Voltage :

120V

Output Current :

10A

Pbfree Code :

yes

JESD-30 Code :

R-XXMA-X8

Min Output Voltage :

24V

Operating Temperature :

-25°C~70°C With Derating

Input Voltage-Nom :

100V

Voltage - Isolation :

3kV

Depth :

124mm

Mounting Type :

DIN Rail

Power (Watts) :

240W

Feature :

Adjustable Output, Load Sharing

Terminal Form :

UNSPECIFIED

Type :

Enclosed

Trim/Adjustable Output :

yes

Number of Outputs :

1

Factory Lead Time :

2 Weeks

Current - Output 1 :

10A

Number of Terminations :

8

Series :

DIMENSION C (240W)

Size / Dimension :

4.61Lx2.36W x 4.88 H 117.0mmx60.0mmx124.0mm

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Approval Agency :

cCSAus, CE, cULus, cURus

Total Power Output-Max :

240W

Mount :

DIN Rail

Terminal Position :

UNSPECIFIED

Output Voltage :

24V

Number of Functions :

1

Max Output Voltage :

28V

Efficiency :

91.6%

Applications :

ITE (Commercial)

RoHS Status :

RoHS Compliant

Moisture Sensitivity Level (MSL) :

Not Applicable

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Voltage - Input :

90V~132VAC 180V~264VAC

Weight :

700G
