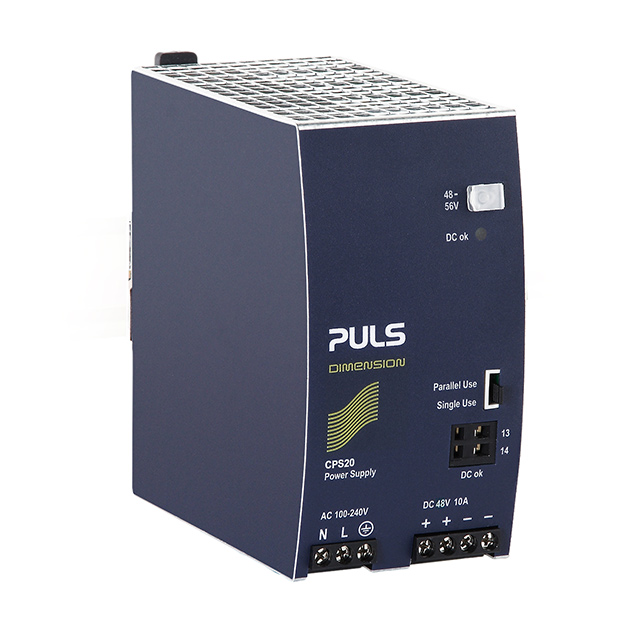

CPS20.481

Manufacturer :

PULS

Product Category :

Min Input Voltage :

100V

Max Operating Temperature :

70°C

Power (Watts) :

480W

Depth :

124mm

Size / Dimension :

5.00Lx2.56W x 4.88 H 127.0mmx65.0mmx124.0mm

Voltage - Isolation :

3kV

Current - Output (Max) :

10A

Voltage - Output 1 :

48V

Output Current :

10A

Factory Lead Time :

2 Weeks

Efficiency :

93.9%

Moisture Sensitivity Level (MSL) :

Not Applicable

Operating Temperature :

-25°C~70°C With Derating

Voltage - Input :

100V~264VAC

Min Output Voltage :

48V

Series :

DIMENSION C (480W)

Width :

127mm

Max Input Voltage :

240V

Mounting Type :

DIN Rail

Max Output Voltage :

56V

Ratings :

IP20

RoHS Status :

RoHS Compliant

Applications :

Hazardous Locations, ITE (Commercial)

Type :

Enclosed

Mount :

DIN Rail

Feature :

Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input

Approval Agency :

cCSAus, CE, cULus, cURus

Number of Outputs :

1

Weight :

1kg

Min Operating Temperature :

-25°C

Length :

65mm
