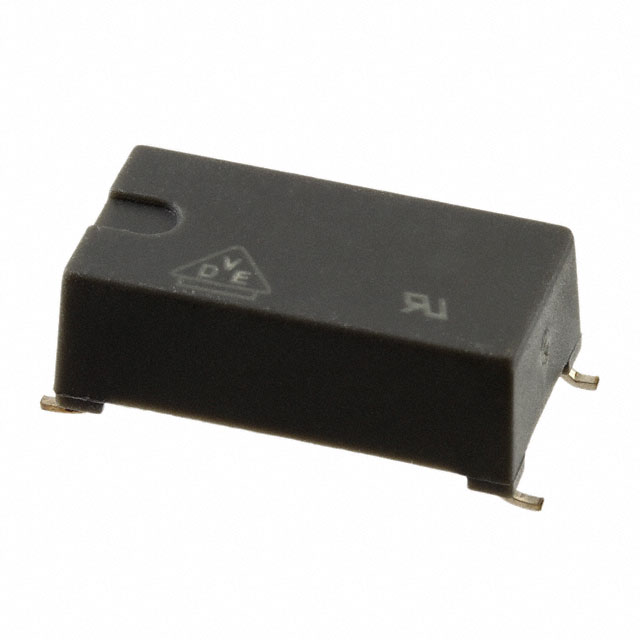

CNY65ABST

Manufacturer :

Vishay

Product Category :

Optoisolators - Transistor, Photovoltaic Output

Power Dissipation :

250mW

Rise / Fall Time (Typ) :

2.4μs 2.7μs

Input Current :

50mA

Collector Emitter Saturation Voltage :

300mV

Voltage - Isolation :

13900VDC

Current Transfer Ratio (Max) :

240% @ 5mA

Number of Channels :

1

Published :

2011

Reverse Voltage (DC) :

5V

Max Output Voltage :

32V

Mount :

PCB, Surface Mount

Moisture Sensitivity Level (MSL) :

4 (72 Hours)

Forward Current :

75mA

Turn On / Turn Off Time (Typ) :

5µs, 3µs

Package / Case :

4-SMD, Gull Wing

Output Type :

Transistor

Number of Pins :

4

Rise Time :

2.4μs

Voltage - Forward (Vf) (Typ) :

1.32V

ECCN Code :

EAR99

Fall Time (Typ) :

2.7 μs

Input Type :

DC

Lead Free :

Lead Free

Radiation Hardening :

No

Additional Feature :

UL APPROVED, VDE APPROVED

Max Input Current :

75mA

Max Collector Current :

50mA

Operating Temperature :

-55°C~85°C

Max Power Dissipation :

250mW

Packaging :

Tape and Reel (TR)

Current Transfer Ratio (Min) :

80% @ 5mA

Configuration :

Single

Output Current per Channel :

50mA

Reverse Breakdown Voltage :

5V

RoHS Status :

ROHS3 Compliant

Dark Current-Max :

200nA

REACH SVHC :

Unknown

Mounting Type :

Surface Mount

Output Voltage :

32V

Collector Emitter Voltage (VCEO) :

32V

Factory Lead Time :

8 Weeks

Number of Elements :

1
