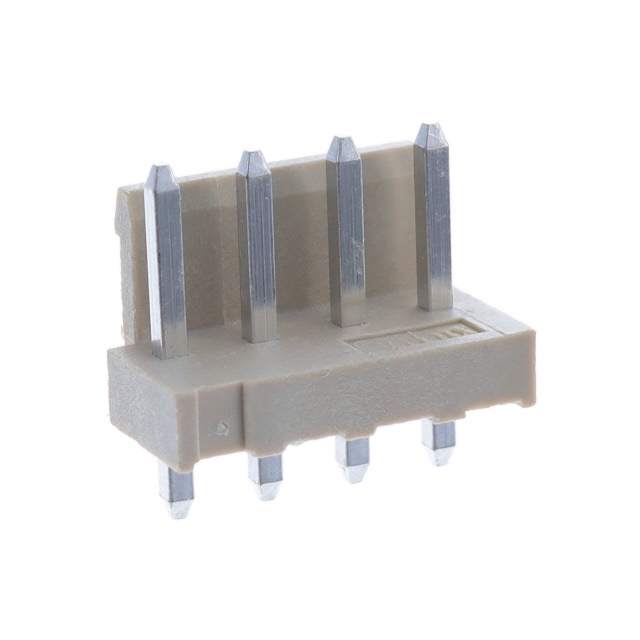

CI5204P1V00-LF
Or copy the link below:
- Mfr.Part #
- CI5204P1V00-LF
- Manufacturer
- CviLux
- Package / Case
- Datasheet
- Download
- Description
- 4 POS 3.96MM(.156) WIRE TO BOARD
- Stock
- 6,311
- In Stock ：
- 6,311
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- CviLux
- Product Category :
- Headers, Male Pins
- Base Product Number :
- CI5204P1
- Applications :
- -
- Insulation Color :
- Natural
- Material Flammability Rating :
- UL94 V-0
- Contact Length - Post :
- 0.146 (3.70mm)
- Fastening Type :
- Locking Ramp
- Contact Finish Thickness - Mating :
- 120.0µin (3.05µm)
- Number of Positions Loaded :
- All
- Operating Temperature :
- -25°C ~ 105°C
- Reach Compliance Code :
- Compliant
- Current Rating (Amps) :
- 7A
- Contact Material :
- Brass
- Connector Type :
- RECTANGULAR POWER CONNECTOR
- Shrouding :
- Shrouded - 1 Wall
- Termination :
- Solder
- Mated Stacking Heights :
- -
- Contact Finish - Mating :
- Tin
- Contact Type :
- Male Pin
- Overall Contact Length :
- 0.575 (14.60mm)
- Contact Finish Thickness - Post :
- 120.0µin (3.05µm)
- Features :
- -
- Contact Length - Mating :
- 0.303 (7.70mm)
- Row Spacing - Mating :
- -
- Style :
- Board to Cable/Wire
- Package :
- Bag
- Contact Shape :
- Square
- Ingress Protection :
- -
- Insulation Material :
- Polyamide (PA46), Nylon 4/6
- Insulation Height :
- 0.370 (9.40mm)
- Mounting Type :
- Through Hole
- Contact Finish - Post :
- Tin
- Product Status :
- Obsolete
- Number of Positions :
- 4
- Voltage Rating :
- 250VAC
- Pitch - Mating :
- 0.156 (3.96mm)
- Series :
- CI52
- Number of Rows :
- 1
- Datasheets
- CI5204P1V00-LF
