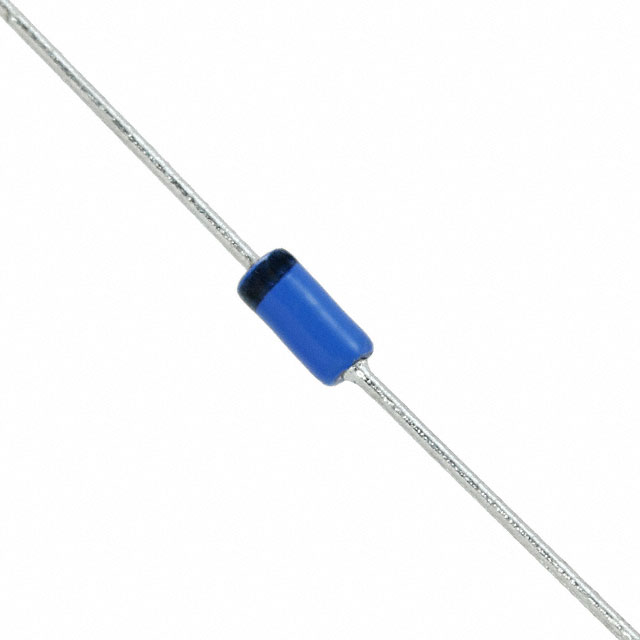

BAT46

Manufacturer :

STMicroelectronics

Product Category :

Diodes - Rectifiers - Single

RoHS Status :

ROHS3 Compliant

Base Part Number :

BAT46

Voltage - Rated DC :

100V

Number of Elements :

1

Max Surge Current :

750mA

Length :

4.5mm

Peak Reverse Current :

5μA

Max Reverse Leakage Current :

5μA

Current - Average Rectified (Io) :

150mA DC

Peak Non-Repetitive Surge Current :

750mA

Average Rectified Current :

150mA

Lifecycle Status :

ACTIVE (Last Updated: 7 months ago)

Diode Type :

Schottky

JESD-609 Code :

e3

REACH SVHC :

No SVHC

Power Dissipation-Max :

0.15W

Capacitance :

10pF

Mount :

Through Hole

Diode Element Material :

SILICON

Forward Current :

150mA

Operating Temperature - Junction :

-65°C~125°C

Output Current :

150mA

Package / Case :

DO-204AH, DO-35, Axial

Current Rating :

150mA

Terminal Finish :

Matte Tin (Sn) - annealed

Polarity :

Standard

Number of Pins :

2

Lead Free :

Lead Free

Height :

2mm

Number of Terminations :

2

Max Operating Temperature :

125°C

Terminal Form :

Wire

Speed :

Small Signal =< 200mA (Io), Any Speed

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Case Connection :

Isolated

Width :

2mm

Forward Voltage :

1V

Radiation Hardening :

No

Max Forward Surge Current (Ifsm) :

1A

Factory Lead Time :

15 Weeks

Max Reverse Voltage (DC) :

100V

ECCN Code :

EAR99

Current - Reverse Leakage @ Vr :

5μA @ 75V

Weight :

4.535924g

Min Operating Temperature :

-65°C

HTS Code :

8541.10.00.70

Element Configuration :

Single

Max Repetitive Reverse Voltage (Vrrm) :

100V

Mounting Type :

Through Hole

Packaging :

Tape and Reel (TR)

Capacitance @ Vr, F :

10pF @ 0V 1MHz

Voltage - Forward (Vf) (Max) @ If :

450mV @ 10mA
