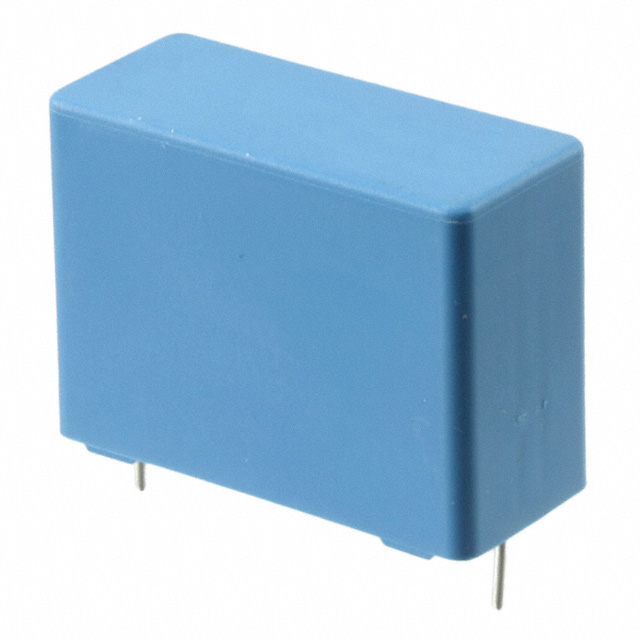

B32024A3334M000
Or copy the link below:
- Mfr.Part #
- B32024A3334M000
- Manufacturer
- EPCOS (TDK)
- Package / Case
- Radial
- Datasheet
- Download
- Description
- CAP FILM 0.33UF 20% 1.5KVDC RAD
- Stock
- 4,516
- In Stock ：
- 4,516
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- EPCOS (TDK)
- Product Category :
- Film Capacitors
- Length :
- 31.5mm
- Height - Seated (Max) :
- 0.906 (23.00mm)
- Rated (DC) Voltage (URdc) :
- 1500V
- Tolerance :
- 20%
- ECCN Code :
- EAR99
- Contact Plating :
- Tin
- Max Operating Temperature :
- 110°C
- Number of Terminations :
- 2
- RoHS Status :
- RoHS Compliant
- Operating Temperature :
- -40°C ~ 110°C
- Ratings :
- Y2
- Mounting Type :
- Through Hole
- Depth :
- 13.5mm
- Dielectric Material :
- Polypropylene
- Pbfree Code :
- yes
- Height :
- 23mm
- Lifecycle Status :
- Production (Last Updated: 2 months ago)
- Lead Spacing :
- 1.083 (27.50mm)
- Terminal Shape :
- Wire
- Capacitance :
- 330nF
- Termination :
- PC Pins
- REACH SVHC :
- No SVHC
- Radiation Hardening :
- No
- Mount :
- Through Hole
- Packaging :
- Bulk
- Moisture Sensitivity Level (MSL) :
- --
- Dielectric :
- PP
- Applications :
- EMI, RFI Suppression
- JESD-609 Code :
- e3
- Min Operating Temperature :
- -40°C
- Width :
- 13.5mm
- Features :
- --
- Capacitor Type :
- FILM CAPACITOR
- Package / Case :
- Radial
- Voltage Rating - AC :
- 300V
- Lead Diameter :
- 800 µm
- Additional Feature :
- RATED AC VOLTAGE(V): 300, SAFETY CLASS Y2
- Voltage - Rated DC :
- 300V
- HTS Code :
- 8532.25.00.70
- Series :
- B32024
- Voltage - Rated AC :
- 300V
- Lead Pitch :
- 27.5mm
- Voltage Rating - DC :
- 1500V (1.5kV)
- Size / Dimension :
- 1.240 L x 0.531 W (31.50mm x 13.50mm)
- Datasheets
- B32024A3334M000
B32024A3334M000 Documents
B32024 330nF Film Capacitor 20% Radial PC Pins 300V-DC 300V-AC Polypropylene Through Hole
B32024A3334M000 Overview
System function requires a rated (DC) voltage (URdc) of 1500V.There is 1.083 (27.50mm) lead spacing on this electrical device.-40°C ~ 110°C is the maximum temperature at which the device can operate.
B32024A3334M000 Features
a rated (DC) voltage (URdc) of 1500V
B32024A3334M000 Applications
There are a lot of EPCOS
B32024A3334M000 applications of film capacitors.
- Coupling, decoupling
- Bypassing
- RFI for automotive
- Industrial and automotive inverters
- Battery management system
- Test and measuring equipment
- RF Modules
- Mobile communications
- Satellite TV
- Global positioning systems
