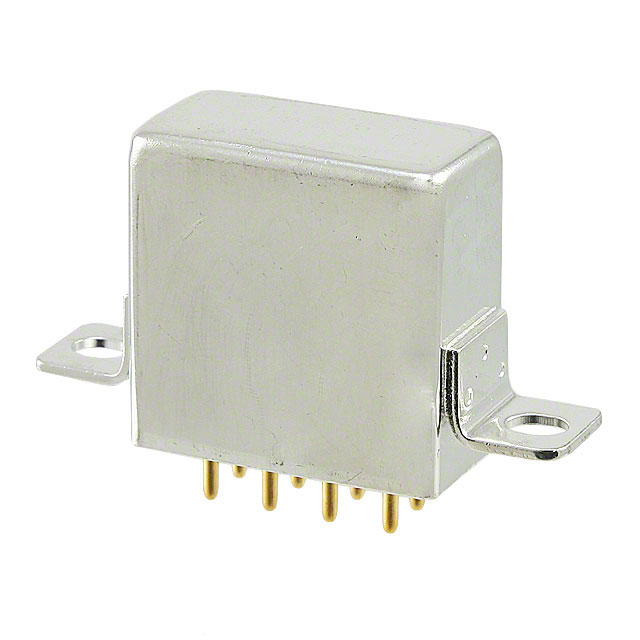

B07D634BC2-0051

Share

Or copy the link below:

Mfr.Part #
B07D634BC2-0051
Manufacturer
TE Connectivity Aerospace Defense and Marine
Package / Case
Datasheet
Download
Description
RELAY GEN PURPOSE DPDT 10A 26.5V
Stock
27,096
In Stock :
27,096

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity Aerospace Defense and Marine
Product Category :
Power Relays, Over 2 Amps
Terminal Finish :
Gold (Au)
Number of Terminations :
8
Must Operate Voltage :
13VDC
Published :
2001
Contact Voltage(AC)-Max :
115V
Release Time :
20 ms
Mounting Type :
Chassis Mount
Coil Current :
88.3mA
Must Release Voltage :
2.3VDC
Operating Temperature :
-65°C~125°C
Pbfree Code :
No
Mounting Feature :
SOCKET MOUNT
Contact/Output Supply Type :
AC/DC
Length - Termination :
0.005 inch
Coil Resistance :
300Ohm
Input Switching Control Type :
Random
Seal Rating :
Sealed - Hermetically
Coil Voltage :
26.5VDC
Relay Type :
GENERAL PURPOSE
Physical Dimension :
27.31mm x 15.88mm x 25.65mm
Surface Mount :
No
ECCN Code :
EAR99
Contact Voltage(DC)-Max :
28V
Electrical Life :
50000 Cycle(s)
Operate Time :
15ms
Sealing :
Hermetically Sealed
Contact Form :
DPDT (2 Form C)
JESD-609 Code :
e4
Contact Material :
Silver Cadmium Oxide (AgCdO)
Contact Rating (Current) :
10A
Coil Type :
Non Latching
Coil/Input Supply Type :
DC
Packaging :
Bulk
Body Breadth :
15.88 mm
Body Height :
25.65mm
Termination Style :
PC Pin
Factory Lead Time :
26 Weeks
Coil Power :
2341mW
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Body Length or Diameter :
27.31mm
Series :
Military, MIL-R-5757/23, 07, CII
PCB Hole Count :
8
Relay Action :
Momentary
HTS Code :
8536.41.00.20
RoHS Status :
Non-RoHS Compliant
Switching Voltage :
115VAC 28VDC -Max
Datasheets
B07D634BC2-0051
Introducing Power Relays, Over 2 Amps TE Connectivity Aerospace Defense and Marine B07D634BC2-0051 from Chip IC,where excellence meets affordability. This product stands out with its Number of Terminations:8, Mounting Type:Chassis Mount, Operating Temperature:-65°C~125°C, B07D634BC2-0051 pinout, B07D634BC2-0051 datasheet PDF, B07D634BC2-0051 amp .Beyond Power Relays, Over 2 Amps TE Connectivity Aerospace Defense and Marine B07D634BC2-0051 ,we also offer MY4 DC24 (S), MY4 DC12 (S), ST2-DC5V-F, Our vast inventory has you covered. Contact us now for immediate solutions.

TE Connectivity Aerospace Defense and Marine B07D634BC2-0051


B07D634BC2-0051 datasheet pdf and Power Relays, Over 2 Amps product details from TE Connectivity Aerospace, Defense and Marine stock available at
