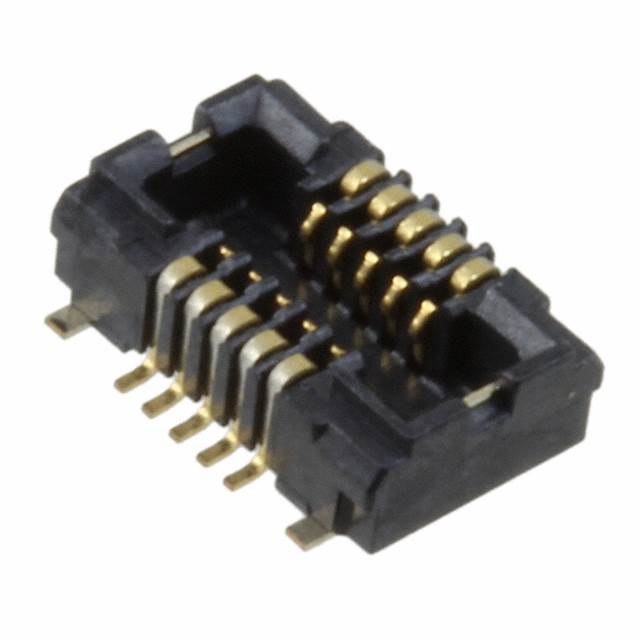

AXT310154
Or copy the link below:
- Mfr.Part #
- AXT310154
- Manufacturer
- Panasonic
- Package / Case
- Datasheet
- Download
- Description
- CONN SOCKET 10POS SMD GOLD
- Stock
- 48,225
- In Stock ：
- 48,225
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Panasonic
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- Current Rating :
- 300mA
- Factory Lead Time :
- 10 Weeks
- Voltage - Rated :
- 60V
- Min Operating Temperature :
- -55°C
- Max Current Rating :
- 5A
- Number of Rows :
- 2
- Connector Type :
- Socket, Outer Shroud Contacts
- Max Voltage Rating (DC) :
- 6.06kV
- Contact Finish :
- Gold
- Stack Height (Mating) :
- 1.5mm
- Termination :
- SMD/SMT
- Contact Plating :
- Gold
- Mount :
- Surface Mount
- Number of Contacts :
- 10
- Orientation :
- Straight
- Series :
- P4S
- Pitch :
- 0.016 0.40mm
- Packaging :
- Tape and Reel (TR)
- Contact Resistance :
- 90mOhm
- Housing Material :
- Polymer
- Published :
- 2008
- Number of Positions :
- 10
- Mounting Type :
- Surface Mount
- Max Operating Temperature :
- 85°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- RoHS Status :
- RoHS Compliant
- Feature :
- Board Guide, Solder Retention
- Height Above Board :
- 0.057 1.45mm
- Datasheets
- AXT310154
Socket, Outer Shroud Contacts Tape & Reel (TR) 2 Rows 0.016 0.40mm Surface Mount 10 Positions P4S Gold SMD/SMT
AXT310154 Overview
You get it in Socket, Outer Shroud Contacts packaging.Packaged in a Tape & Reel (TR) case.Mounting type Surface Mount is selected for the device.A member of the P4S Series.Maintaining Board Guide, Solder Retention is easy.Use a Surface Mount socket to mount this.Using it at a temperature below 85°C is ideal.A minimum temperature of -55°C is needed for this device.
AXT310154 Features
P4S series
Package / Case: Tape & Reel (TR)
Mounting Type:Surface Mount
Max Operating temperature at -55°C
AXT310154 Applications
There are a lot of Panasonic Electric Works
AXT310154 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
