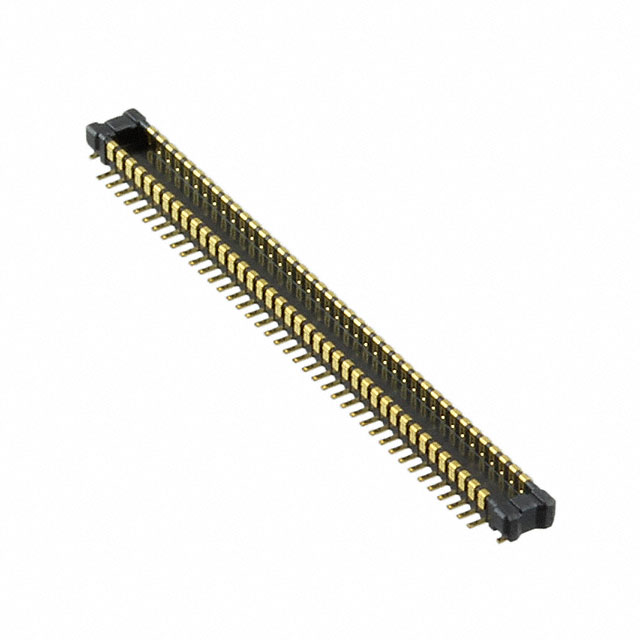

AXE680124
Or copy the link below:
- Mfr.Part #
- AXE680124
- Manufacturer
- Panasonic
- Package / Case
- Datasheet
- Download
- Description
- CONN HDR 80POS SMD GOLD
- Stock
- 4,400
- In Stock ：
- 4,400
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Panasonic
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- Min Operating Temperature :
- -55°C
- Connector Type :
- Header, Outer Shroud Contacts
- JESD-609 Code :
- e4
- ECCN Code :
- EAR99
- Termination :
- Solder
- Published :
- 2008
- Max Current Rating :
- 5A
- Number of Positions :
- 80
- Mixed Contacts :
- No
- Max Operating Temperature :
- 85°C
- Option :
- GENERAL PURPOSE
- DIN Conformance :
- No
- Feature :
- Solder Retention
- HTS Code :
- 8536.69.40.51
- Max Voltage Rating (AC) :
- 60V
- Factory Lead Time :
- 10 Weeks
- Number of Rows :
- 2
- MIL Conformance :
- No
- Housing Material :
- Polymer
- Mount :
- Surface Mount
- Contact Gender :
- Male
- RoHS Status :
- RoHS Compliant
- Height Above Board :
- 0.026 0.65mm
- Orientation :
- Straight
- Series :
- A4S
- Stack Height (Mating) :
- 0.8mm
- IEC Conformance :
- No
- Contact Finish :
- Gold
- Mounting Type :
- Surface Mount
- Depth :
- 2mm
- Moisture Sensitivity Level (MSL) :
- 2 (1 Year)
- UL Flammability Code :
- 94V-0
- Length :
- 17.8mm
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Contact Resistance :
- 90mOhm
- Total Number of Contacts :
- 80
- Pitch :
- 0.016 0.40mm
- Additional Feature :
- LOW PROFILE
- Contact Material :
- COPPER ALLOY
- Packaging :
- Tape and Reel (TR)
- Max Voltage Rating (DC) :
- 6.06kV
- Filter Feature :
- No
- Datasheets
- AXE680124
Header, Outer Shroud Contacts Tape & Reel (TR) 2 Rows 0.016 0.40mm Surface Mount 80 Positions A4S Gold Solder COPPER ALLOY
AXE680124 Overview
The product comes in a package of Header, Outer Shroud Contacts.To package the product, a Tape & Reel (TR) case is used.Surface Mount is the type of mounting for the device.The product is a member of the A4S Series.It is possible to maintain Solder Retention while the system is operating.For mounting this part, a Surface Mount socket is required.Use it when the temperature is below 85°C.Temperatures below -55°C are required for this device to operate.Among other features are LOW PROFILE, to name only a few.
AXE680124 Features
A4S series
Package / Case: Tape & Reel (TR)
Mounting Type:Surface Mount
Max Operating temperature at -55°C
Additional Feature: LOW PROFILE
AXE680124 Applications
There are a lot of Panasonic Electric Works
AXE680124 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
You may place an order without registering to Chip IC. We strongly recommend that you log in before purchasing as you can track your order at any time.
RFQ (Request for Quotations)It is recommended to send RFQ to get the latest prices and stock availability about the part.Our sales will reply to your inquiry within 24 hours.
Payment MethodFor your convenience, we accept multiple payment methods in USD, Such as:PayPal, Credit Card, and wire transfer.
IMPORTANT NOTICEYou may place an order without registering to 1. You'll receive an order confirmations by e-mail soon . (Please remember to check the spam box if you didn't hear from us). 2. Since stock availability and prices may change at any time, the sales will reconfirm the order details and update you at soonest time.
Most of our products are shipped via FEDEX,DHL,UPS and SF EXPRESS...
Shipping CostShipping Cost starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).If customer have shipping account, we can make shipment under customer’s shipping account with freight collect directly.
The basic freight (for package ≤0.5 KG ) depends on the time zones and countries
Once the goods are shipped, estimated delivery time depends on the shipping methods you chose. You can track it by the tracking no.
