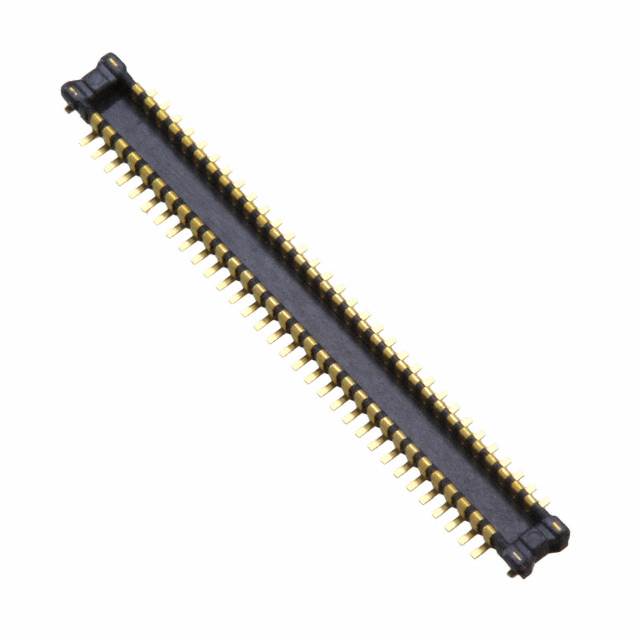

AXE664124
Or copy the link below:
- Mfr.Part #
- AXE664124
- Manufacturer
- Panasonic
- Package / Case
- Datasheet
- Download
- Description
- CONN HDR 64POS SMD GOLD
- Stock
- 48,521
- In Stock ：
- 48,521
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Panasonic
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- Mounting Type :
- Surface Mount
- UL Flammability Code :
- 94V-0
- DIN Conformance :
- No
- Min Operating Temperature :
- -55°C
- Stack Height (Mating) :
- 0.8mm
- Housing Material :
- Polymer
- Termination :
- Solder
- Contact Gender :
- Male
- Filter Feature :
- No
- Max Voltage Rating (AC) :
- 60V
- Number of Rows :
- 2
- IEC Conformance :
- No
- Total Number of Contacts :
- 64
- MIL Conformance :
- No
- Feature :
- Solder Retention
- Contact Resistance :
- 90mOhm
- Length :
- 14.6mm
- Depth :
- 2mm
- Factory Lead Time :
- 10 Weeks
- Max Voltage Rating (DC) :
- 6.06kV
- Series :
- A4S
- RoHS Status :
- RoHS Compliant
- Height Above Board :
- 0.026 0.65mm
- Orientation :
- Straight
- Connector Type :
- Header, Outer Shroud Contacts
- Contact Finish :
- Gold
- Additional Feature :
- LOW PROFILE
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Max Current Rating :
- 5A
- Number of Positions :
- 64
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mount :
- Surface Mount
- Max Operating Temperature :
- 85°C
- Pitch :
- 0.016 0.40mm
- Contact Material :
- COPPER ALLOY
- Option :
- GENERAL PURPOSE
- Mixed Contacts :
- No
- Packaging :
- Tape and Reel (TR)
- Published :
- 2008
- JESD-609 Code :
- e4
- Datasheets
- AXE664124
AXE664124 Documents
Header, Outer Shroud Contacts Tape & Reel (TR) 2 Rows 0.016 0.40mm Surface Mount 64 Positions A4S Gold Solder COPPER ALLOY
AXE664124 Overview
Currently, it is packaged in Header, Outer Shroud Contacts.A Tape & Reel (TR) case is used to package the product.The mounting type of the device is Surface Mount.A product of the A4S Series, it belongs to the range of products of that series.The operating system can be configured to maintain the value of Solder Retention when it operates.Using a Surface Mount socket is required in order to mount the item.A temperature below 85°C is best for using it.The device must run at -55°C degrees.Furthermore, there are other features available, such as LOW PROFILE, to name a few.
AXE664124 Features
A4S series
Package / Case: Tape & Reel (TR)
Mounting Type:Surface Mount
Max Operating temperature at -55°C
Additional Feature: LOW PROFILE
AXE664124 Applications
There are a lot of Panasonic Electric Works
AXE664124 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
