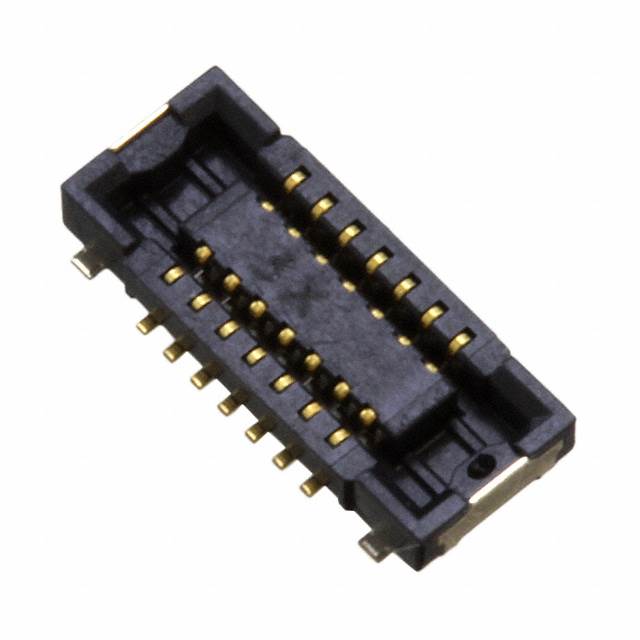

AXE514124
Or copy the link below:
- Mfr.Part #
- AXE514124
- Manufacturer
- Panasonic
- Package / Case
- Datasheet
- Download
- Description
- CONN SOCKET 14POS SMD GOLD
- Stock
- 22,472
- In Stock ：
- 22,472
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Panasonic
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- RoHS Status :
- RoHS Compliant
- Series :
- A4S
- Mount :
- Surface Mount
- Contact Plating :
- Gold
- Max Voltage Rating (DC) :
- 6.06kV
- Number of Contacts :
- 14
- Contact Resistance :
- 90mOhm
- Number of Rows :
- 2
- Height Above Board :
- 0.030 0.75mm
- Pitch :
- 0.016 0.40mm
- Length :
- 5.3mm
- Max Voltage Rating (AC) :
- 60V
- Orientation :
- Straight
- Termination :
- Solder
- Connector Type :
- Socket, Center Strip Contacts
- Number of Positions :
- 14
- Published :
- 2008
- Mounting Type :
- Surface Mount
- Feature :
- Solder Retention
- Packaging :
- Tape and Reel (TR)
- Min Operating Temperature :
- -55°C
- Depth :
- 2.2mm
- Housing Material :
- Polymer
- Max Operating Temperature :
- 85°C
- Contact Finish :
- Gold
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Max Current Rating :
- 5A
- Stack Height (Mating) :
- 0.8mm 1mm
- Datasheets
- AXE514124
Socket, Center Strip Contacts Tape & Reel (TR) 2 Rows 0.016 0.40mm Surface Mount 14 Positions A4S Gold Solder
AXE514124 Overview
Currently, it is packaged in Socket, Center Strip Contacts.A Tape & Reel (TR) case is used to package the product.The mounting type of the device is Surface Mount.A product of the A4S Series, it belongs to the range of products of that series.The operating system can be configured to maintain the value of Solder Retention when it operates.Using a Surface Mount socket is required in order to mount the item.A temperature below 85°C is best for using it.The device must run at -55°C degrees.
AXE514124 Features
A4S series
Package / Case: Tape & Reel (TR)
Mounting Type:Surface Mount
Max Operating temperature at -55°C
AXE514124 Applications
There are a lot of Panasonic Electric Works
AXE514124 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
