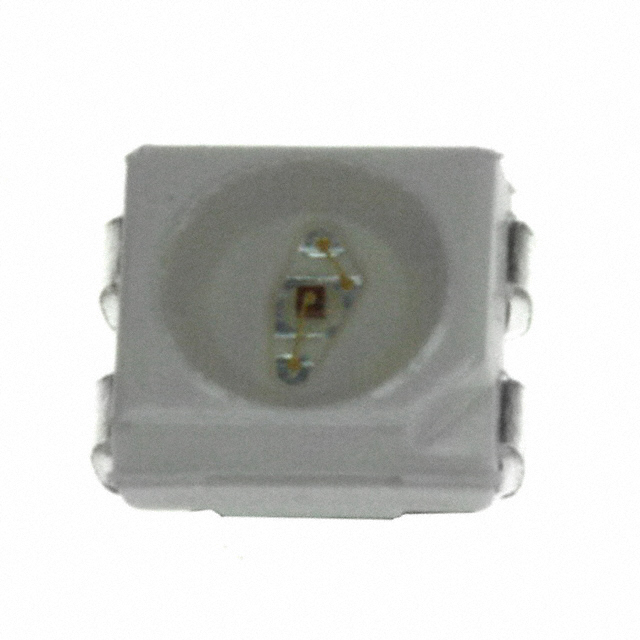

ASMC-PHB9-TW005

Manufacturer :

Broadcom

Product Category :

Min Operating Temperature :

-40°C

Size / Dimension :

3.20mm Lx2.80mm W

Lens Color :

Colorless

Configuration :

Standard

Number of Pins :

4

Number of Terminations :

4

Wavelength - Peak :

623nm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Voltage - Forward (Vf) (Typ) :

2.8V

Published :

2007

Color :

Red

Power Rating :

240mW

Lead Free :

Lead Free

Package / Case :

4-PLCC

Series :

Envisium™

Number of Functions :

1

Luminous Flux :

4.3 lm

ECCN Code :

EAR99

Mounting Type :

Surface Mount

Power Dissipation :

240mW

Max Power Dissipation :

240mW

Height :

2.1mm

Luminous Intensity :

1 cd

Viewing Angle :

120°

Millicandela Rating :

1463mcd

Radiation Hardening :

No

Lens Size :

2.20mm Dia

Wavelength - Dominant :

617nm

Additional Feature :

High Reliability

REACH SVHC :

No SVHC

Terminal Pitch :

3mm

Illumination Color :

Orange

Number of Elements :

1

Factory Lead Time :

5 Weeks

Depth :

3.2mm

Reverse Voltage :

5V

RoHS Status :

ROHS3 Compliant

Forward Current :

50mA

Max Operating Temperature :

100°C

Lens Transparency :

Clear

Packaging :

Tape and Reel (TR)

Input Current :

50mA

Packing Method :

TAPE AND REEL 7"

Base Part Number :

ASMC-PHB9

Termination :

SMD/SMT

Lens Style :

Round with Flat Top

Mount :

Surface Mount

Optoelectronic Device Type :

SINGLE COLOR LED
