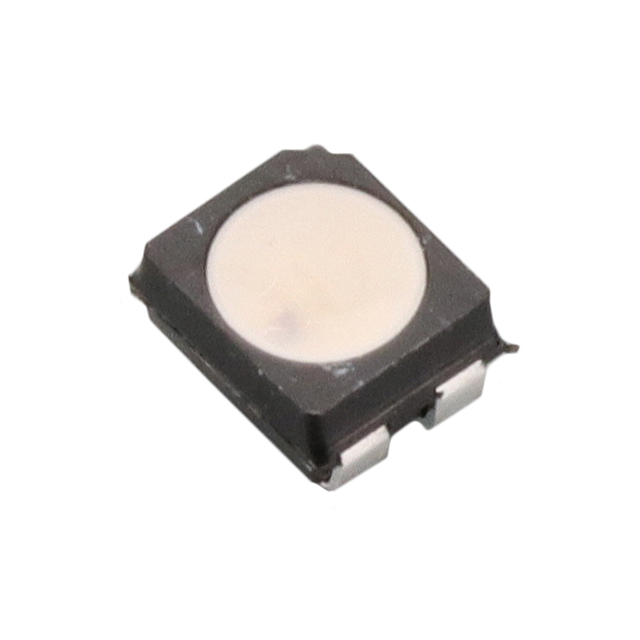

ASMB-BTE1-0B332

Manufacturer :

Broadcom

Product Category :

Current - Test :

20mA Red 20mA Green 20mA Blue

Number of Pins :

4

Depth :

3.2mm

Color :

Red, Green, Blue (RGB)

Published :

2013

Configuration :

Common Anode

Packaging :

Tape and Reel (TR)

Viewing Angle :

110°

RoHS Status :

ROHS3 Compliant

Max Operating Temperature :

100°C

Forward Voltage :

3.1V

Max Junction Temperature (Tj) :

110°C

Voltage - Forward (Vf) (Typ) :

2.1V Red 3.1V Green 3.1V Blue

Number of Elements :

3

Factory Lead Time :

14 Weeks

Lens Color :

White

Wavelength - Dominant :

622nm Red 529nm Green 469nm Blue

Millicandela Rating :

630mcd Red, 1500mcd Green, 350mcd Blue

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Size / Dimension :

3.20mm Lx2.80mm W

Min Operating Temperature :

-40°C

Supplier Device Package :

4-PLCC

Height (Max) :

1.90mm

Length :

2.8mm

Lens Size :

2.40mm Dia

Luminous Intensity :

350 mcd

REACH SVHC :

No SVHC

Lens Style :

Round with Flat Top

Width :

2.8mm

Package / Case :

4-PLCC

Lens Transparency :

Diffused

Reverse Voltage :

4V

Height :

2.1mm

Mounting Type :

Surface Mount

Forward Current :

20mA

Number of LEDs :

3

Mount :

Surface Mount

Wavelength - Peak :

629nm Red 521nm Green 464nm Blue

Contact Plating :

Silver
