AN7705SP

Share

Or copy the link below:

Mfr.Part #
AN7705SP
Manufacturer
Panasonic
Package / Case
TO-252-3, DPak (2 Leads + Tab), SC-63
Datasheet
Download
Description
IC REG LINEAR 5V 1.2A SP3SUA
Stock
18,568
In Stock :
18,568

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Panasonic
Product Category :
Voltage Regulators - Linear
Mounting Type :
Surface Mount
Pbfree Code :
No
Number of Regulators :
1
Packaging :
Bulk
Reach Compliance Code :
Unknown
Package / Case :
TO-252-3, DPak (2 Leads + Tab), SC-63
Min Current Limit :
1.2A
Voltage - Input (Max) :
16V
Voltage - Output (Min/Fixed) :
5V
Dropout Voltage1-Max :
1V
Width :
5.5mm
Input Voltage (Min) :
6V
Published :
2006
Current - Quiescent (Iq) :
5mA
Terminal Pitch :
2.3mm
Dropout Voltage1-Nom :
1V
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
RoHS Status :
RoHS Compliant
Output Voltage 1 :
5V
Terminal Position :
Single
Number of Outputs :
1
Operating Temperature :
25°C~125°C
Height Seated (Max) :
2.4mm
Number of Terminations :
2
Length :
6.5mm
Output Configuration :
Positive
Number of Functions :
1
Base Part Number :
AN7705
Mount :
Surface Mount
PSRR :
70dB (120Hz)
JESD-30 Code :
R-PSSO-G2
Terminal Form :
Gull wing
Voltage Tolerance-Max :
3%
Input Voltage Absolute-Max :
30V
Protection Features :
Over Current, Over Temperature, Short Circuit
Qualification Status :
Not Qualified
ECCN Code :
EAR99
Output Type :
FIXED
Output Voltage :
5V
Datasheets
AN7705SP
Introducing Voltage Regulators - Linear Panasonic AN7705SP from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Surface Mount, Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63, Operating Temperature:25°C~125°C, Number of Terminations:2, Base Part Number:AN7705, AN7705SP pinout, AN7705SP datasheet PDF, AN7705SP amp .Beyond Voltage Regulators - Linear Panasonic AN7705SP ,we also offer ZXTR2105F-7, TPS7A2050PDBVR, RP130K501D-TR, Our vast inventory has you covered. Contact us now for immediate solutions.

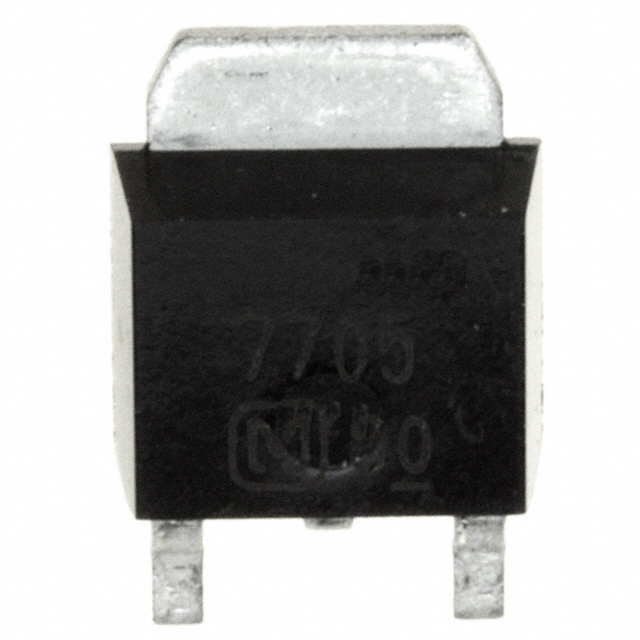

Panasonic AN7705SP


[Voltage Regulators - Linear Panasonic AN7705SP] Overview

Discover the pinnacle of voltage regulation technology with the Panasonic AN7705SP. Designed and crafted with precision by Panasonic, a leader in electronic components, this integrated circuit promises unparalleled performance and reliability. As a linear voltage regulator, the AN7705SP ensures a stable output voltage of 5V with a maximum current rating of 1.2A, making it ideal for a wide range of electronic applications.

Engineered to meet the highest industry standards, this IC boasts exceptional efficiency and low dropout voltage, ensuring consistent and reliable power delivery even in demanding conditions. Whether you're powering sensitive microcontrollers, driving motors, or charging batteries, the AN7705SP delivers the power you need with uncompromising precision.

AN7705SP Features

  • Stable Output Voltage: Provides a consistent 5V output for reliable performance.
  • High Current Capability: With a maximum rating of 1.2A, it can power a wide range of devices and components.
  • Low Dropout Voltage: Ensures efficient power conversion with minimal wasted energy.
  • Compact SP3SUA Package: Space-saving design for easy integration into any application.
  • Thermal Shutdown Protection: Safeguards the IC against overheating and ensures long-term reliability.

AN7705SP Applications

  • Industrial Automation: Utilized in PLCs, motor control systems, and sensor interfaces for precise voltage regulation in manufacturing environments.
  • Consumer Electronics: Integrated into USB power supplies, battery chargers, and audio amplifiers to ensure stable power for seamless operation.
  • Telecommunications: Employed in base stations, routers, and network switches to maintain consistent voltage levels for reliable data transmission.
  • Automotive Electronics: Incorporated into onboard computers, infotainment systems, and LED lighting modules to regulate voltage in vehicles for enhanced performance and safety.
