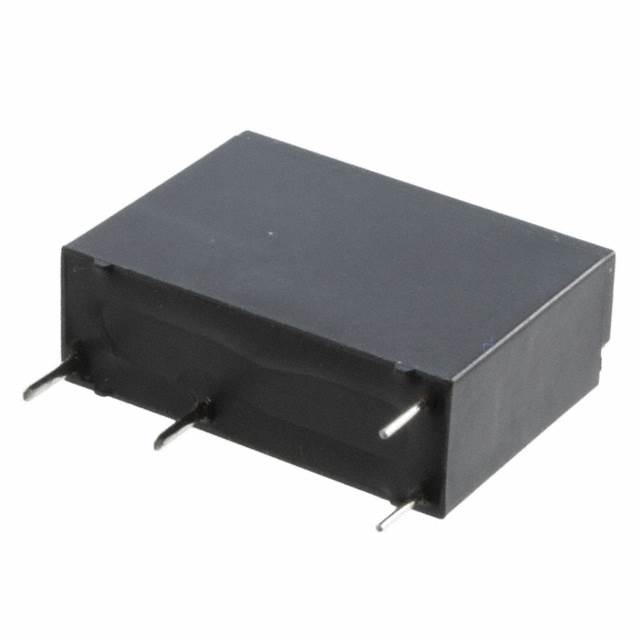

ALDP124W

Share

Or copy the link below:

Mfr.Part #
ALDP124W
Manufacturer
Panasonic
Package / Case
Datasheet
Download
Description
RELAY GEN PURPOSE SPST 5A 24V
Stock
314
In Stock :
314

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Panasonic
Product Category :
Power Relays, Over 2 Amps
Physical Dimension :
20.5mm x 7.2mm x 15.3mm
Coil Type :
Non Latching
Termination :
PC Pin
Contact Material :
Silver Nickel (AgNi)
Max Current Rating :
5A
PCB Hole Count :
4
Coil Resistance :
2.88kohm
RoHS Status :
RoHS Compliant
Number of Terminations :
4
Series :
ALDP
Termination Style :
PC Pin
Contact Form :
SPST-NO (1 Form A)
Operate Time :
10ms
Switching Capacity :
1.385 kW
Must Operate Voltage :
18VDC
Weight :
4G
Max Voltage Rating (AC) :
277V
Contact Plating :
Silver
Switching Current :
5A
Coil Power :
200mW
Packaging :
Tray
Must Release Voltage :
1.2VDC
Switching Voltage :
277VAC -Max
ECCN Code :
EAR99
Coil Voltage (DC) :
24V
Contact Current(AC)-Max :
5A
Release Time :
10 ms
Contact/Output Supply Type :
AC
Coil/Input Supply Type :
DC
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Input Switching Control Type :
Random
Dielectric Strength Between Open Contacts :
750 Vrms
Contact Resistance :
100MOhm
Number of Pins :
4
Coil Voltage :
24VDC
Operating Temperature :
-40°C~85°C
Body Height :
15.3mm
Depth :
7.2mm
Surface Mount :
No
Contact (AC) Max Rating R Load :
5A@277VAC
Factory Lead Time :
12 Weeks
Length :
20.5mm
Electrical Life :
100000 Cycle(s)
Reach Compliance Code :
Unknown
Coil Current :
8.3mA
Voltage - Rated AC :
277V
Power Rating :
200mW
Insulation Resistance :
1000000000Ohm
Lead Free :
Lead Free
Relay Action :
Momentary
Published :
2000
Mounting Type :
Through Hole
Relay Type :
GENERAL PURPOSE
Throw Configuration :
SPST
Packing Method :
Box
Reference Standard :
UL; VDE
Introducing Power Relays, Over 2 Amps Panasonic ALDP124W from Chip IC,where excellence meets affordability. This product stands out with its Number of Terminations:4, Number of Pins:4, Operating Temperature:-40°C~85°C, Mounting Type:Through Hole, ALDP124W pinout, ALDP124W datasheet PDF, ALDP124W amp .Beyond Power Relays, Over 2 Amps Panasonic ALDP124W ,we also offer MY4 DC24 (S), MY4 DC12 (S), ST2-DC5V-F, Our vast inventory has you covered. Contact us now for immediate solutions.
