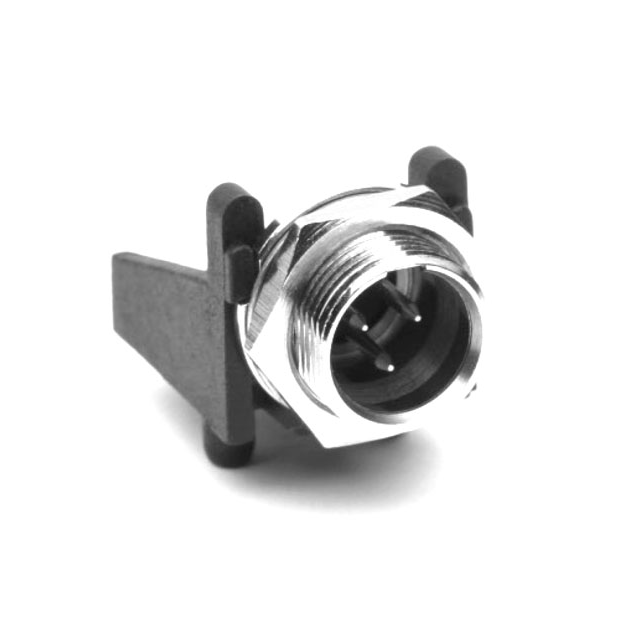

AG5MCCH
Or copy the link below:
- Mfr.Part #
- AG5MCCH
- Manufacturer
- Amphenol Audio
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT MALE MINI XLR 5POS SLD
- Stock
- 41
- In Stock ：
- 41
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Audio
- Product Category :
- Circular Connector Assemblies
- Factory Lead Time :
- 12 Weeks
- Shell Material :
- Brass
- Termination :
- Solder
- Insert Material :
- Polyphenylene Sulfide (PPS)
- Max Operating Temperature :
- 80°C
- Operating Temperature :
- -30°C~80°C
- Mounting Feature :
- Bulkhead - Front Side Nut
- Material Flammability Rating :
- UL94 V-0
- Shielding :
- Unshielded
- Shell Finish :
- Nickel
- Current Rating (Amps) :
- 4A
- Number of Positions :
- 5
- Feature :
- Board Guide
- Applications :
- Audio
- Min Operating Temperature :
- -30°C
- Contact Plating :
- Gold, Silver
- Orientation :
- Keyed
- Connector Type :
- Receptacle, Male Pins
- RoHS Status :
- ROHS3 Compliant
- Length :
- 15.5mm
- Contact Finish - Mating :
- Gold
- Mount :
- Through Hole
- Ingress Protection :
- IP40
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Color :
- Silver
- Packaging :
- Bulk
- Series :
- Ag
- Pitch :
- 2mm
- Fastening Type :
- Latch Holder
- Mounting Type :
- Panel Mount, Through Hole, Right Angle
- Shell Size - Insert :
- Mini XLR
- Housing Material :
- Zinc
- Contact Material :
- Brass
- Datasheets
- AG5MCCH
AG5MCCH Documents
Receptacle, Male Pins Brass Panel Mount, Through Hole, Right Angle 5 Positions Solder Gold Nickel Bulk Keyed Latch Holder
AG5MCCH Overview
You get it in Receptacle, Male Pins packaging.Mounting type Panel Mount, Through Hole, Right Angle is selected for the device.Packaged in a Bulk case.A member of the AG Series.Using it at a temperature below 80°C is ideal.A minimum temperature of -30°C is needed for this device.This feature renders it more powerful in a number of ways because of its Board Guide feature.There's a Through Hole mount on the part.Device runs in -30°C~80°C operating temperature.
AG5MCCH Features
AG series
AG5MCCH Applications
There are a lot of Amphenol Sine Systems Corp
AG5MCCH Circular Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
