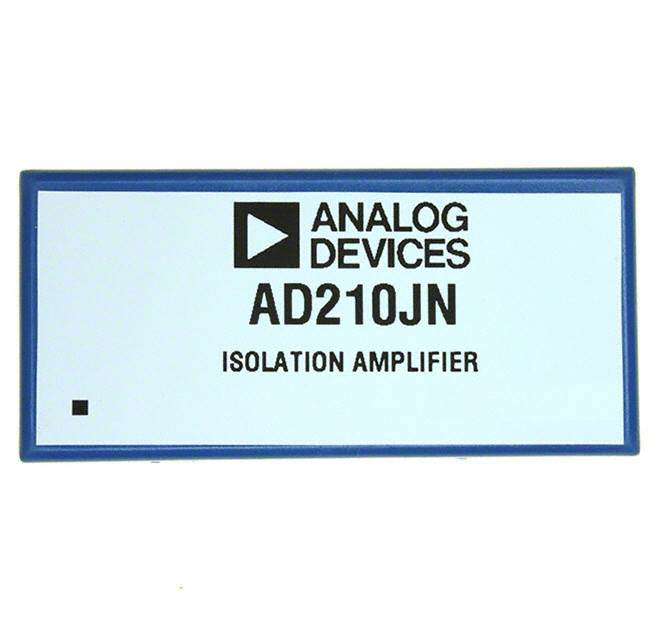

AD210JN
Or copy the link below:
- Mfr.Part #
- AD210JN
- Manufacturer
- Analog Devices, Inc.
- Package / Case
- 38-DIP (0.800, 20.32mm), 12 Leads
- Datasheet
- Download
- Description
- IC OPAMP ISOLATION 1 CIRC 12DIP
- Stock
- 40
- In Stock ：
- 40
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Analog Devices, Inc.
- Product Category :
- Instrumentation, OP Amps, Buffer Amps
- Current - Input Bias :
- 30pA
- Operating Supply Voltage :
- 15V
- Operating Supply Current :
- 50mA
- Number of Channels :
- 1
- Common Mode Rejection Ratio :
- 120 dB
- Lifecycle Status :
- Production (Last Updated: 3 weeks ago)
- Base Part Number :
- AD210
- Mounting Type :
- Through Hole
- Pin Count :
- 12
- Terminal Position :
- Dual
- Number of Functions :
- 1
- Package / Case :
- 38-DIP (0.800, 20.32mm), 12 Leads
- Width :
- 25.4mm
- Bandwidth :
- 20 kHz
- Resistance :
- 1 TΩ
- Lead Free :
- Contains Lead
- Number of Terminations :
- 12
- Packaging :
- Tube
- Number of Pins :
- 12
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Length :
- 53.3mm
- Factory Lead Time :
- 20 Weeks
- Contact Plating :
- Lead, Tin
- Number of Elements :
- 2
- Output Current per Channel :
- 5mA
- Mount :
- Through Hole
- Pbfree Code :
- No
- Radiation Hardening :
- No
- Input Offset Voltage (Vos) :
- 5mV
- Voltage - Input Offset :
- 15mV
- Slew Rate :
- 1V/μs
- Voltage - Supply, Single/Dual (±) :
- 14.25V~15.75V
- RoHS Status :
- Non-RoHS Compliant
- Amplifier Type :
- Isolation
- -3db Bandwidth :
- 15MHz
- Isolation Voltage :
- 1.5kV
- ECCN Code :
- EAR99
- Height :
- 8.91mm
- REACH SVHC :
- No SVHC
- Termination :
- Through Hole
- Nominal Supply Current :
- 50mA
- Operating Temperature :
- -25°C~85°C
- Supply Voltage :
- 15V
- Voltage Gain :
- 40dB
- Datasheets
- AD210JN
[Instrumentation, OP Amps, Buffer Amps - Analog Devices, Inc. AD210JN] Overview
The Analog Devices, Inc. AD210JN is a high-performance integrated circuit operational amplifier designed to meet the demanding requirements of instrumentation, operational amplifier (op-amp), and buffer amplifier applications. Engineered with precision and reliability in mind, this IC offers exceptional isolation and signal amplification capabilities, making it an ideal choice for various industrial and commercial applications.
Featuring a compact 12-pin DIP package, the AD210JN ensures ease of integration into existing electronic systems while providing superior performance and durability. Its versatile design and advanced functionalities make it a preferred solution for professionals seeking high-quality signal processing solutions.
AD210JN Features
- High-performance operational amplifier
- Isolation functionality for enhanced signal integrity
- Compact 12-pin DIP package for easy integration
- Exceptional reliability and precision
- Wide range of operating temperatures
- Low noise and distortion
- Robust construction for industrial applications
AD210JN Applications
- Industrial Automation: The AD210JN is used in industrial automation systems for signal conditioning and amplification, ensuring accurate measurement and control of various processes.
- Medical Instruments: In medical devices such as patient monitors and diagnostic equipment, the AD210JN provides precise signal amplification and isolation, contributing to reliable and accurate healthcare data.
- Test and Measurement Equipment: Test and measurement instruments benefit from the AD210JN's high-performance characteristics, enabling accurate signal processing and analysis in diverse testing environments.
- Audio Equipment: In audio applications such as professional amplifiers and audio processing units, the AD210JN delivers low-noise amplification, resulting in clear and high-fidelity audio output.
- Power Management Systems: Power management systems utilize the AD210JN for voltage and current sensing, ensuring efficient and reliable power distribution in various industrial and commercial settings.
