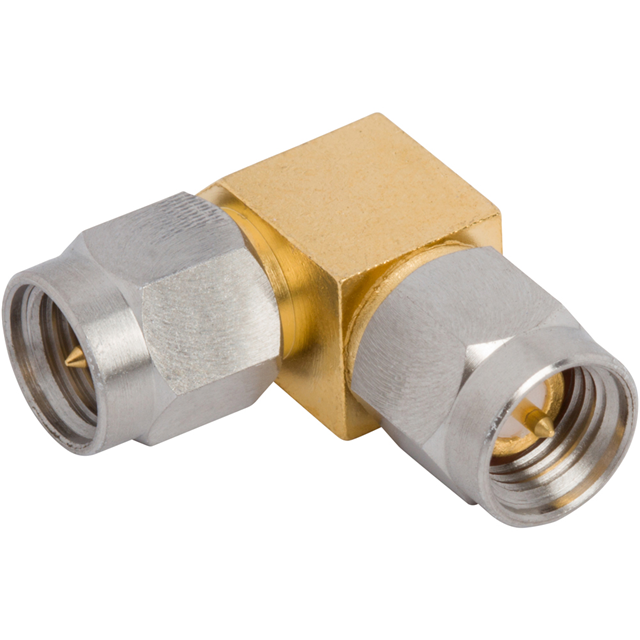

AD-SMAPSMAP-2
Or copy the link below:
- Mfr.Part #
- AD-SMAPSMAP-2
- Manufacturer
- Amphenol RF
- Package / Case
- Datasheet
- Download
- Description
- SMA PLUG TO SMA PLUG ADAPTER 50
- Stock
- 156
- In Stock ：
- 156
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol RF
- Product Category :
- Coaxial Connector (RF) Adapters
- Factory Lead Time :
- 12 to 14 Weeks
- Connector Type :
- Intra Series Coaxial
- Base Product Number :
- AD-SMA
- Adapter Type :
- Plug to Plug
- Dielectric Material :
- Polytetrafluoroethylene (PTFE)
- Manufacturer :
- Amphenol
- Center Gender :
- Male to Male
- Package :
- Bag
- Style :
- RIGHT ANGLE
- Impedance :
- 50Ohm
- Insertion Loss :
- -
- Product Type :
- RF Adapters - In Series
- Mating Cycles :
- 500
- Center Contact Plating :
- Gold
- RF Series :
- SMA
- Frequency - Max :
- 22 GHz
- Operating Temp Range :
- -65C to 165C
- Product Category :
- adapters
- Rad Hardened :
- No
- Frequency Range :
- DC to 22 GHz
- Subcategory :
- RF Adapters
- Package Type :
- Individual Bag
- Features :
- -
- Mounting Feature :
- -
- Includes :
- -
- Operating Temperature :
- -65°C ~ 165°C
- RoHS :
- Details
- Product Status :
- Active
- Product Diameter (mm) :
- Not Required(mm)
- Contact Plating :
- Gold
- Product Height (mm) :
- 19.9(mm)
- Gender :
- PL/PL
- Convert From (Adapter End) :
- SMA Plug, Male Pin
- Body Plating :
- Gold
- Convert To (Adapter End) :
- SMA Plug, Male Pin
- Ingress Protection :
- -
- Mounting Type :
- Free Hanging (In-Line), Right Angle
- Body Material :
- Brass
- Contact Material :
- BERYLLIUM COPPER
- Product Length (mm) :
- 17.28(mm)
- Adapter Series :
- SMA to SMA
- Body Finish :
- Gold
- Conversion Type :
- Same Series
- Packaging :
- Bag
- Orientation :
- RIGHT ANGLE
- Center Contact Material :
- BERYLLIUM COPPER
- Series :
- -
- Brand :
- Amphenol RF
- Type :
- SMA Adapter
- Fastening Type :
- Threaded, Threaded
- Datasheets
- AD-SMAPSMAP-2
Intra Series Coaxial Threaded, Threaded 50Ohm Bag Polytetrafluoroethylene (PTFE) -65°C ~ 165°C
AD-SMAPSMAP-2 Overview
The product comes in a package of Intra Series Coaxial.Its mounting type is Free Hanging (In-Line), Right Angle.Packaging is performed using a Bag case.It is part of the - Series of products.There is no operating temperature for the device.
AD-SMAPSMAP-2 Features
- series
AD-SMAPSMAP-2 Applications
There are a lot of Amphenol RF
AD-SMAPSMAP-2 Coaxial Connectors applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
