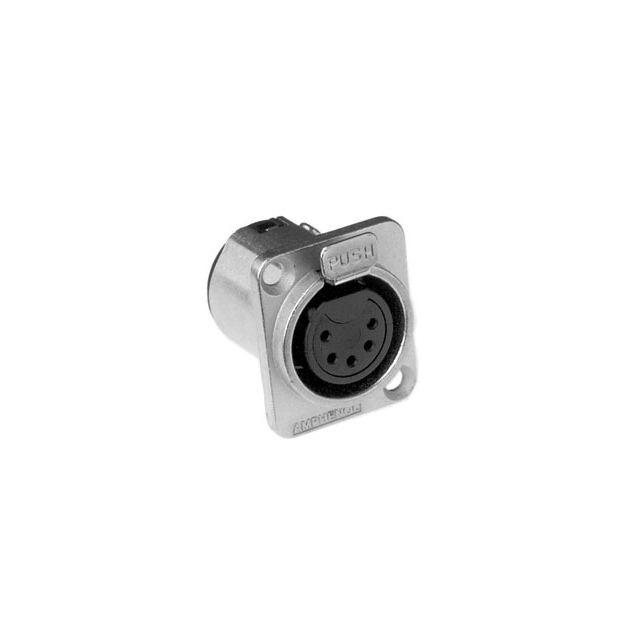

AC5FDZ
Or copy the link below:
- Mfr.Part #
- AC5FDZ
- Manufacturer
- Amphenol Audio
- Package / Case
- Metal
- Datasheet
- Download
- Description
- CONN PLUG FMALE XLR 5P SLDR CUP
- Stock
- 11
- In Stock ：
- 11
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Audio
- Product Category :
- Circular Connector Assemblies
- Mounting Feature :
- Flange
- Orientation :
- Keyed
- Fastening Type :
- Latch Lock
- Contact Plating :
- Silver
- Contact Resistance :
- 3mOhm
- Factory Lead Time :
- 12 Weeks
- Number of Positions :
- 5
- Termination :
- Solder Cup
- RoHS Status :
- ROHS3 Compliant
- Voltage - Rated DC :
- 133V
- Number of Ports :
- 1
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Contacts :
- 5
- Contact Finish - Mating :
- Tin
- Shell Finish :
- Nickel
- Material Flammability Rating :
- UL94 V-0
- Contact Material :
- Phosphor Bronze
- Length :
- 26mm
- Shell Size - Insert :
- XLR
- Current Rating :
- 7.5A
- Body Material :
- Metal
- Published :
- 2000
- Voltage - Rated AC :
- 50V
- Ratings :
- IP40
- Current Rating (Amps) :
- 7.5A
- REACH SVHC :
- No SVHC
- Min Operating Temperature :
- -25°C
- Plating :
- Nickel
- Mount :
- Panel
- Shielding :
- Shielded
- Feature :
- Ground
- Voltage - Rated :
- 133V
- Max Operating Temperature :
- 75°C
- Insulation Resistance :
- 1GOhm
- Color :
- Silver
- Operating Temperature :
- -25°C~75°C
- Gender :
- FEMALE
- Height :
- 31mm
- Ingress Protection :
- IP40
- Mounting Type :
- Panel Mount
- Shell Material :
- Zinc Die Cast
- Series :
- AC Z
- Flammability Rating :
- UL94 V-0
- Number of Pins :
- 5
- Applications :
- Audio
- Connector Type :
- Plug, Female Sockets
- Package / Case :
- Metal
- Datasheets
- AC5FDZ
AC5FDZ Documents
Plug, Female Sockets Zinc Die Cast Panel Mount 5 Positions Solder Cup Tin Nickel Keyed Latch Lock
AC5FDZ Overview
This product is packaged in a Plug, Female Sockets box.Panel Mount indicates that the device is mounted.The product is a part of the AC Z Series.It is equipped with 5 pins.Use it below 75°C.A minimum temperature of -25°C must be maintained for the operation of this device.Metal refers to a package enclosing a device.In many ways, Ground makes it more powerful.By Panel, the part is mounted.Operating temperature is set to -25°C~75°C.
AC5FDZ Features
AC Z series
AC5FDZ Applications
There are a lot of Amphenol Sine Systems Corp
AC5FDZ Circular Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
