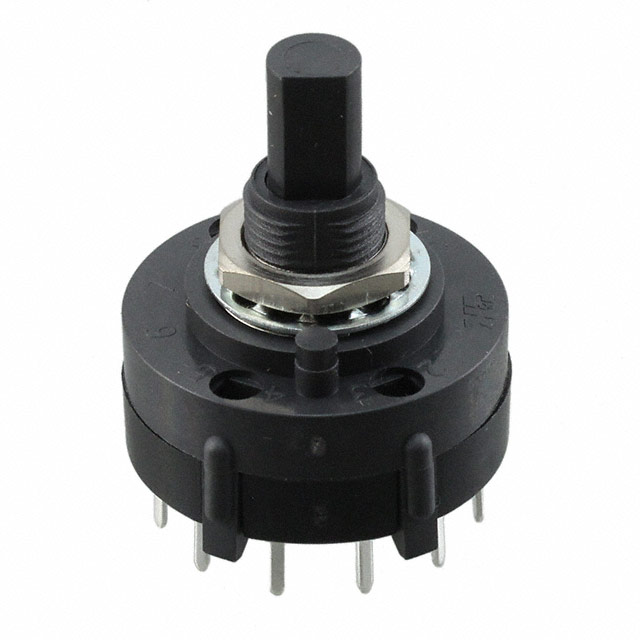

A40303RNCQ

Manufacturer :

C&K

Product Category :

Contact Style :

Non-Shorting

Length :

26.19mm

Factory Lead Time :

16 Weeks

Number of Decks :

1

Depth Behind Panel :

14.48mm

Termination Style :

PC Pin

Min Operating Temperature :

-30°C

Mounting Type :

Panel Mount, Through Hole

Voltage - Rated AC :

125V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RoHS Status :

ROHS3 Compliant

Termination :

PC Pins

Throw Configuration :

4P, 4P3T

Contact Finish :

Silver

Contact Material :

Silver (Ag)

Circuit per Deck :

4P3T

Panel Cutout Dimensions :

Circular - 9.80mm Dia

Max Operating Temperature :

85°C

Housing Material :

Nylon

Depth :

26.19mm

Current Rating (Amps) :

2.5A AC 350mA DC

Number of Positions :

3

Actuator Material :

Glass, Nylon

Index Angle :

30 °

Voltage - Rated DC :

125V

Contact Timing :

Non-Shorting (BBM)

Electrical Life :

300000 cycles

Current Rating :

2.5A

Series :

A

Max Voltage Rating (DC) :

125V

Index Stops :

FIXED

Number of Poles per Deck :

4

Max Voltage Rating (AC) :

125V

Mount :

Panel, Through Hole

Orientation :

Straight

Max Current Rating :

2.5A

Actuator Length :

9.53mm

Published :

2010

Actuator Type :

Flatted (6.35mm Dia)
