A3211EEHLT-T

Manufacturer :

Allegro MicroSystems

Product Category :

Magnetic Sensors - Switches (Solid State)

Published :

2011

Operating Temperature :

-40°C~85°C TA

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Qualification Status :

Not Qualified

Supply Voltage :

2.75V

Function :

Omnipolar Switch

Number of Pins :

3

JESD-30 Code :

R-XDSO-N6

Operating Supply Current :

2mA

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

RoHS Status :

ROHS3 Compliant

Output Current :

1mA

Lead Free :

Lead Free

Type :

Omnipolar Switch

Terminal Finish :

Matte Tin (Sn)

Terminal Form :

NO LEAD

Number of Terminations :

6

Width :

2mm

Supply Voltage-Min (Vsup) :

2.5V

Terminal Pitch :

0.5mm

Test Condition :

-40°C ~ 85°C

Packaging :

Tape and Reel (TR)

Height Seated (Max) :

0.75mm

Sensing Range :

±5.5mT Trip, ±1mT Release

JESD-609 Code :

e3

Max Output Current :

1mA

Voltage - Supply :

2.5V~3.5V

Mount :

Surface Mount

Max Supply Current :

1μA

Pbfree Code :

yes

Mounting Type :

Surface Mount

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Operating Supply Voltage :

2.75V

Terminal Position :

Dual

Output Type :

Open Drain

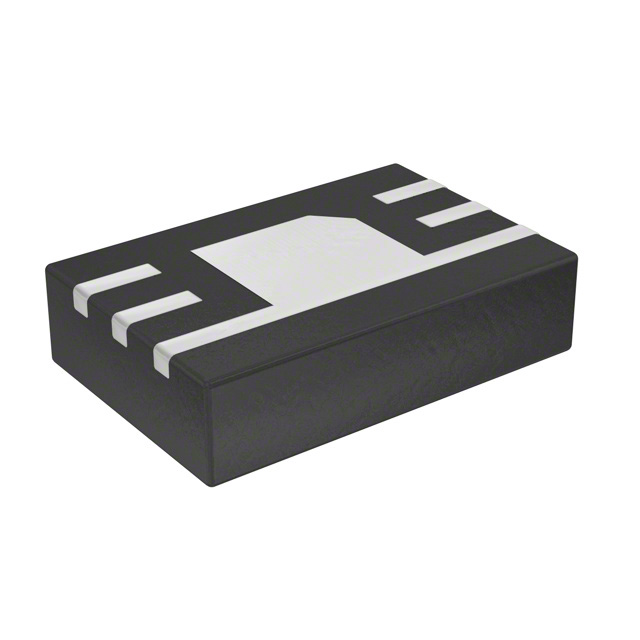

Package / Case :

6-PowerWFDFN

Polarization :

North Pole, South Pole
