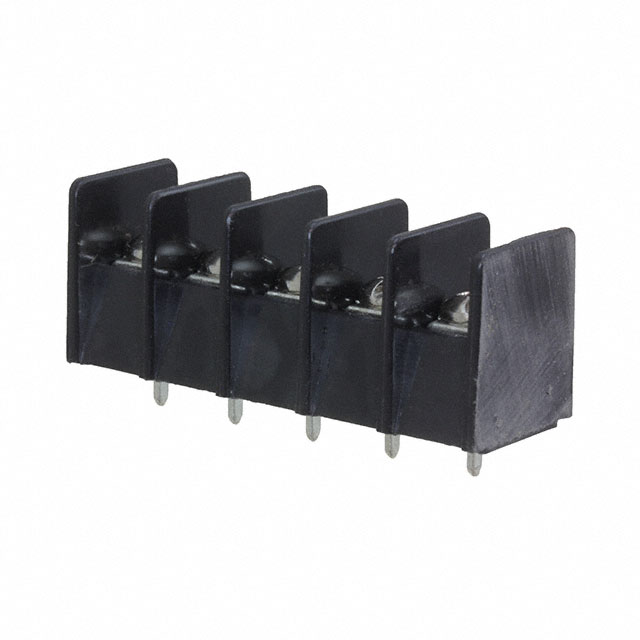

A20820504
Or copy the link below:
- Mfr.Part #
- A20820504
- Manufacturer
- Eaton-Electronics Division
- Package / Case
- Datasheet
- Download
- Description
- CONN BARRIER STRIP 5CIRC 0.375"
- Stock
- 13,691
- In Stock ：
- 13,691
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Eaton-Electronics Division
- Product Category :
- Barrier Blocks
- Packaging :
- Bulk
- Housing Color :
- Black
- Max Operating Temperature :
- 105°C
- Mount :
- Through Hole
- Color :
- Black
- Wire Gauge (Min) :
- 12 AWG
- Number of Rows :
- 1
- Material Flammability Rating :
- UL94 V-0
- Voltage - Rated :
- 300V
- Pitch :
- 0.375 9.53mm
- Orientation :
- Straight
- Current Rating (Amps) :
- 30A
- Wire Gauge :
- 12-22 AWG
- Termination :
- Solder
- Min Operating Temperature :
- -40°C
- Wire Gauge (Max) :
- 22 AWG
- Factory Lead Time :
- 16 Weeks
- Terminal Block Type :
- Barrier Block
- Terminal Screw Material :
- Brass
- Barrier Type :
- 2 Wall (Dual)
- Bottom Termination :
- PC Pin
- Material - Insulation :
- Thermoplastic
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Circuits :
- 5
- Series :
- A2000
- Number of Contacts :
- 5
- Operating Temperature :
- -40°C~105°C
- Current Rating :
- 30A
- Mounting Type :
- Through Hole
- RoHS Status :
- RoHS Compliant
- Flammability Rating :
- UL94 V-0
- Number of Wire Entries :
- 5
- Published :
- 2014
- Weight :
- 453.59237mg
- Top Termination :
- Screws
- Terminal Screw Finish :
- Nickel
- Datasheets
- A20820504
A20820504 Documents
Bulk 1 Rows Through Hole Barrier Block PC Pin A2000 0.375 9.53mm 2 Wall (Dual) 5 Circuits Thermoplastic
A20820504 Overview
Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the A2000 Series of products.Whenever it's below 105°C, it's best to use it.The device must operate at a temperature of -40°C at all times.Through Hole mounts the part.5 circuits make up the part.There is no operating temperature for the device.
A20820504 Features
A2000 series
A20820504 Applications
There are a lot of Eaton - Electronics Division
A20820504 Terminal Blocks applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
