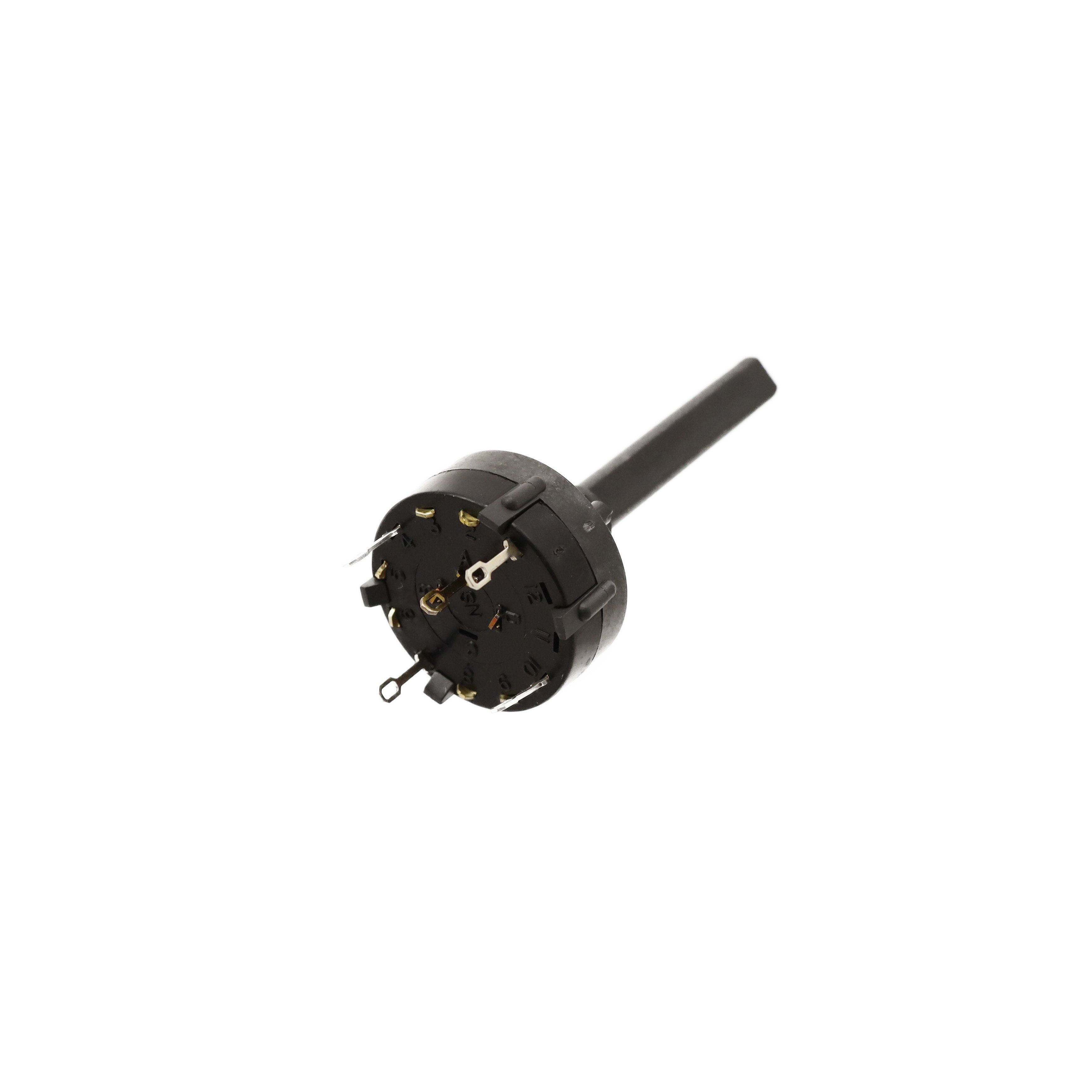

A20603RNZG

Manufacturer :

C&K

Product Category :

Max Operating Temperature :

85°C

Contact Timing :

Non-Shorting (BBM)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Max Voltage Rating (DC) :

125V

Max Voltage Rating (AC) :

125V

Mount :

Panel

Index Angle :

30 °

Min Operating Temperature :

-30°C

Number of Decks :

1

Depth :

26.19mm

Max Current Rating :

2.5A

Current Rating (Amps) :

2.5A AC 350mA DC

Published :

2010

Housing Material :

Nylon

Contact Material :

Silver (Ag)

Orientation :

Straight

Current Rating :

2.5A

Actuator Material :

Glass, Nylon

Termination Style :

Solder Lug

RoHS Status :

ROHS3 Compliant

Termination :

Solder

Number of Positions :

6

Electrical Life :

300000 cycles

Circuit per Deck :

DP6T

Panel Cutout Dimensions :

Circular - 9.80mm Dia

Series :

A

Number of Poles per Deck :

2

Contact Plating :

Gold, Silver

Depth Behind Panel :

20.83mm

Actuator Type :

Flatted (6.35mm Dia)

Voltage - Rated DC :

125V

Throw Configuration :

DP6T

Contact Finish :

Gold

Mounting Type :

Panel Mount

Actuator Length :

9.53mm

Length :

26.19mm

Angle of Throw :

30°

Index Stops :

FIXED

Voltage - Rated AC :

125V

Factory Lead Time :

16 Weeks

Contact Style :

Non-Shorting
