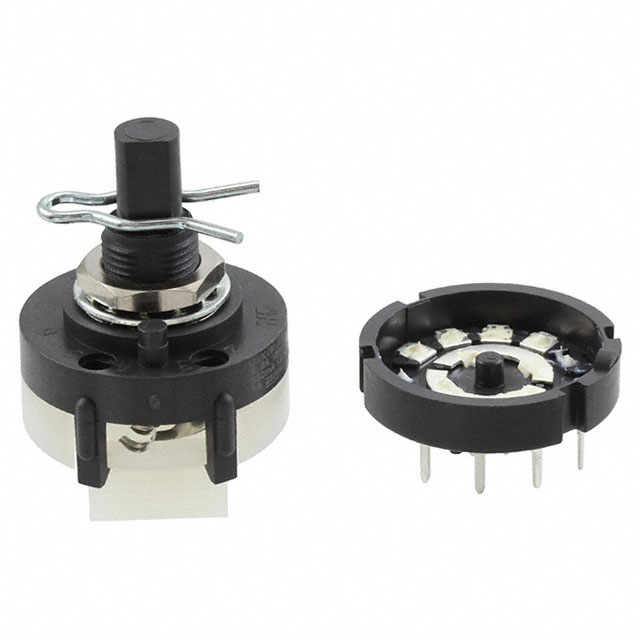

A20403RNMCQ

Manufacturer :

C&K

Product Category :

Voltage - Rated DC :

125V

Circuit per Deck :

DP4T

Housing Material :

Nylon

Actuator Type :

Flatted (6.35mm Dia)

Actuator Material :

Glass, Nylon

Panel Cutout Dimensions :

Circular - 9.80mm Dia

Number of Poles per Deck :

2

Number of Positions :

4

Current Rating :

2.5A

Depth Behind Panel :

14.48mm

Index Stops :

FIXED

Max Voltage Rating (AC) :

125V

Max Current Rating :

2.5A

Contact Finish :

Silver

Published :

2013

Termination Style :

PC Pin

Min Operating Temperature :

-30°C

Contact Timing :

Non-Shorting (BBM)

Contact Style :

Non-Shorting

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RoHS Status :

ROHS3 Compliant

Termination :

Modular Base

Actuator Length :

9.53mm

Length :

26.19mm

Contact Material :

Silver (Ag)

Mount :

Panel, Through Hole

Current Rating (Amps) :

2.5A AC 350mA DC

Series :

A

Voltage - Rated AC :

125V

Number of Decks :

1

Electrical Life :

15000 cycles

Max Operating Temperature :

85°C

Depth :

26.19mm

Mounting Type :

Panel Mount, Through Hole

Max Voltage Rating (DC) :

125V

Factory Lead Time :

16 Weeks

Orientation :

Straight

Index Angle :

30 °

Feature :

Modular Base
