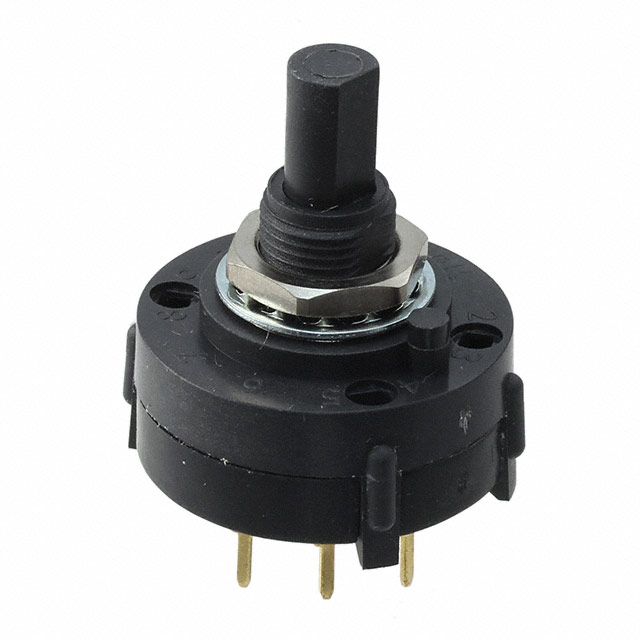

A20303RNCG

Manufacturer :

C&K

Product Category :

Number of Positions :

3

Min Operating Temperature :

-30°C

Throw Configuration :

DP, DP3T

Circuit per Deck :

DP3T

Index Stops :

FIXED

Contact Style :

Non-Shorting

Max Current Rating :

2.5A

Contact Plating :

Gold, Silver

Orientation :

Straight

Contact Finish :

Gold

Actuator Length :

9.53mm

Voltage - Rated AC :

125V

Panel Cutout Dimensions :

Circular - 9.80mm Dia

Termination :

PC Pins

Depth :

26.19mm

RoHS Status :

ROHS3 Compliant

Contact Material :

Silver (Ag)

Housing Material :

Nylon

Actuator Type :

Flatted (6.35mm Dia)

Mounting Type :

Panel Mount, Through Hole

Voltage - Rated DC :

125V

Max Voltage Rating (AC) :

125V

Depth Behind Panel :

14.48mm

Mount :

Panel, Through Hole

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Index Angle :

30 °

Max Voltage Rating (DC) :

125V

Series :

A

Max Operating Temperature :

85°C

Length :

26.19mm

Electrical Life :

300000 cycles

Current Rating :

2.5A

Radiation Hardening :

No

Termination Style :

PC Pin

Actuator Material :

Glass, Nylon

Factory Lead Time :

16 Weeks

Number of Decks :

1

Current Rating (Amps) :

2.5A AC 350mA DC

Published :

2012

Contact Timing :

Non-Shorting (BBM)

Number of Poles per Deck :

2
