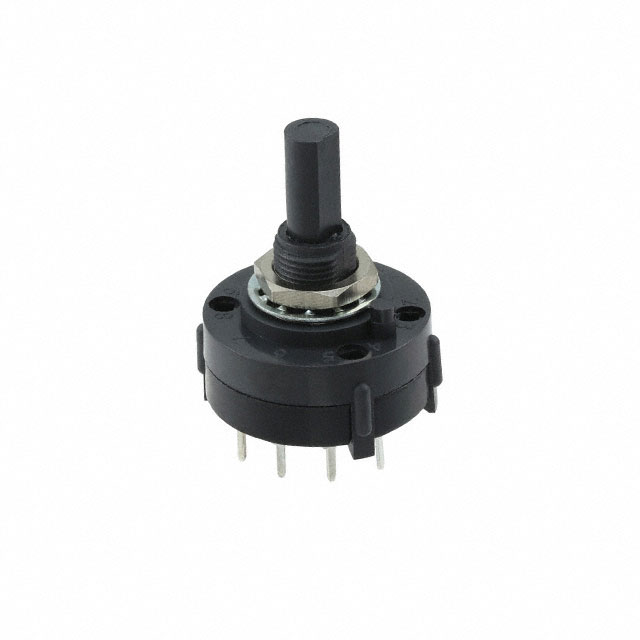

A10405RNCQ

Manufacturer :

C&K

Product Category :

Termination Style :

PC Pin

RoHS Status :

ROHS3 Compliant

Max Voltage Rating (DC) :

125V

Depth Behind Panel :

14.48mm

Max Voltage Rating (AC) :

125V

Current Rating :

2.5A

Mounting Type :

Panel Mount, Through Hole

Contact Material :

Silver (Ag)

Contact Style :

Non-Shorting

Actuator Type :

Flatted (6.35mm Dia)

Length :

26.19mm

Published :

2015

Contact Timing :

Non-Shorting (BBM)

Current Rating (Amps) :

2.5A AC 350mA DC

Panel Cutout Dimensions :

Circular - 9.80mm Dia

Max Operating Temperature :

85°C

Number of Positions :

4

Index Angle :

30 °

Index Stops :

FIXED

Electrical Life :

300000 cycles

Number of Decks :

1

Contact Finish :

Silver

Factory Lead Time :

16 Weeks

Orientation :

Straight

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Throw Configuration :

SP, SP4T

Radiation Hardening :

No

Termination :

PC Pins

Actuator Length :

12.70mm

Actuator Material :

Glass, Nylon

Max Current Rating :

2.5A

Min Operating Temperature :

-30°C

Housing Material :

Nylon

Voltage - Rated DC :

125V

Voltage - Rated AC :

125V

Mount :

Panel, Through Hole

Series :

A

Depth :

26.19mm

Circuit per Deck :

SP4T
