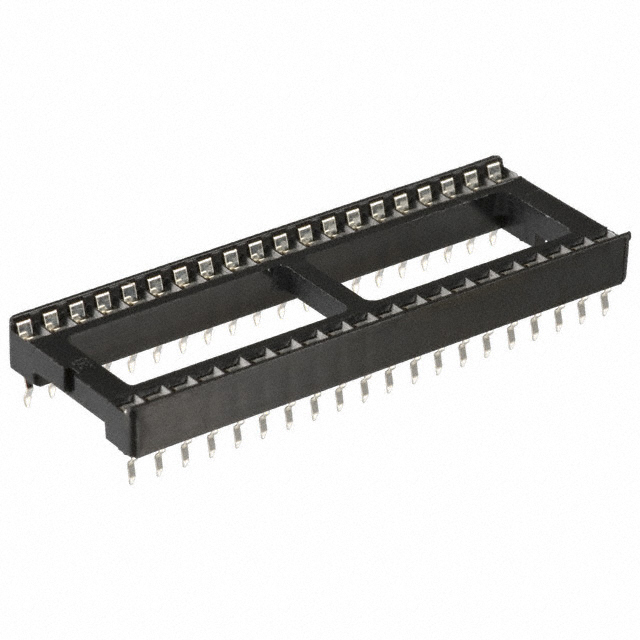

A 40-LC-TR
Or copy the link below:
- Mfr.Part #
- A 40-LC-TR
- Manufacturer
- ASSMANN WSW Components
- Package / Case
- Datasheet
- Download
- Description
- CONN IC DIP SOCKET 40POS TIN
- Stock
- 902
- In Stock ：
- 902
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ASSMANN WSW Components
- Product Category :
- IC Sockets
- Terminal Pitch :
- 2.54mm
- Published :
- 2011
- PCB Contact Pattern :
- RECTANGULAR
- Operating Temperature :
- -55°C~85°C
- JESD-609 Code :
- e3
- Contact Style :
- BELLOWED TYPE
- Contact Finish - Mating :
- Tin
- Insulation Resistance :
- 5000000000Ohm
- Number of Contacts :
- 40
- Contact Material - Post :
- Phosphor Bronze
- Contact Material - Mating :
- Phosphor Bronze
- Pitch - Post :
- 0.100 2.54mm
- Number of Positions or Pins (Grid) :
- 40 (2 x 20)
- Mating Contact Pitch :
- 0.1 inch
- Factory Lead Time :
- 23 Weeks
- PCB Contact Row Spacing :
- 0.6 mm
- Feature :
- Open Frame
- Termination Post Length :
- 0.124 3.15mm
- Pitch - Mating :
- 0.100 2.54mm
- Termination :
- Solder
- Material Flammability Rating :
- UL94 V-0
- Current Rating (Amps) :
- 1A
- Body Breadth :
- 0.7 inch
- Mounting Type :
- Through Hole
- RoHS Status :
- ROHS3 Compliant
- Packaging :
- Tube
- Contact Resistance :
- 30mOhm
- Type :
- DIP, 0.6 (15.24mm) Row Spacing
- Dielectric Withstanding Voltage :
- 1400VAC V
- Body Depth :
- 0.201 inch
- Body Length or Diameter :
- 2 inch
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Housing Material :
- Polybutylene Terephthalate (PBT)
- Datasheets
- A 40-LC-TR
A 40-LC-TR datasheet pdf and Sockets for ICs, Transistors product details from Assmann WSW Components stock available at Xinshop
