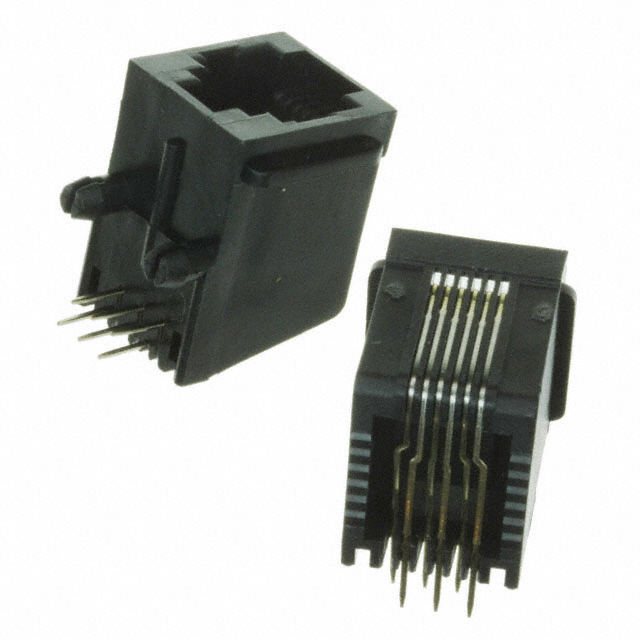

A-2004-1-4-R
Or copy the link below:
- Mfr.Part #
- A-2004-1-4-R
- Manufacturer
- ASSMANN WSW Components
- Package / Case
- Datasheet
- Download
- Description
- CONN MOD JACK 6P6C R/A UNSHLD
- Stock
- 880
- In Stock ：
- 880
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ASSMANN WSW Components
- Product Category :
- Modular Connector Jacks
- Published :
- 2009
- Max Voltage Rating (AC) :
- 120V
- Contact Finish :
- Gold
- Insulation Resistance :
- 500000000Ohm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Max Current Rating :
- 1.5A
- Shielding :
- Unshielded
- RoHS Status :
- ROHS3 Compliant
- Orientation :
- 90° Angle (Right)
- PCB Contact Pattern :
- STAGGERED
- Tab Direction :
- Down
- Contact Resistance :
- 20mOhm
- Reference Standard :
- UL
- Mounting Type :
- Through Hole
- Housing Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- JESD-609 Code :
- e4
- Contact Style :
- TELCOM, MODULAR
- Contact Finish Thickness :
- 6.00μin 0.152μm
- Number of Contacts :
- 6
- Connector Type :
- JACK
- Number of Positions/Contacts :
- 6p6c (RJ11, RJ12, RJ14, RJ25)
- Contact Gender :
- Male
- Body/Shell Style :
- Receptacle
- Number of Ports :
- 1
- Termination :
- Solder
- Durability :
- 500 Cycles
- Packaging :
- Tray
- Factory Lead Time :
- 23 Weeks
- Reliability :
- COMMERCIAL
- ECCN Code :
- EAR99
- Pitch :
- 2.54mm
- Contact Material :
- Phosphor Bronze
- LED Color :
- Does Not Contain LED
- Mount :
- Through Hole
- Additional Feature :
- RoHS Compliant
- Feature :
- Board Lock, Panel Stops
- Insulator Color :
- Black
- Lead Free :
- Lead Free
- Operating Temperature :
- -40°C~85°C
- Datasheets
- A-2004-1-4-R
Jack Tray Unshielded 6p6c (RJ11, RJ12, RJ14, RJ25) 1 Port 90° Angle (Right) Solder Through Hole -40°C~85°C
A-2004-1-4-R Overview
The connector type Jack refers to the connector type.The device's mounting type is Through Hole.In order to package the product, a Tray case is used.In addition, there are other features such as ROHS COMPLIANT, to mention only a few.It features 1 ports for managing a variety of tasks.Its Board Lock, Panel Stops feature renders it more powerful in many ways.The part is mounted by Through Hole.The device runs in -40°C~85°C Operating Temperature.
A-2004-1-4-R Features
A-2004-1-4-R Applications
There are a lot of Assmann WSW Components
A-2004-1-4-R Modular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
