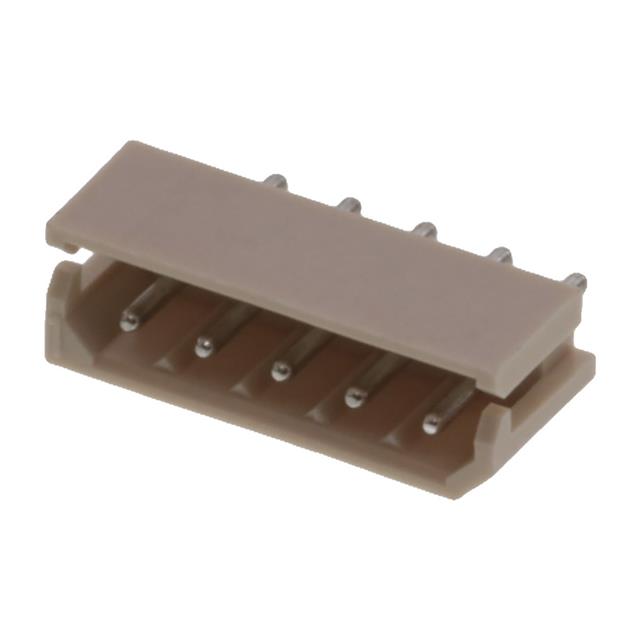

99-99-0991

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Contact Type :

-

RoHS :

Details

Subcategory :

Headers and Wire Housings

Maximum Operating Temperature :

+ 105 C

Product Depth (mm) :

4.9(mm)

Packaging :

Bag-packed

Product Category :

Headers and Wire Housings

Operating Temp Range :

-40C to 105C

Housing Material :

Nylon 6/6

Current Rating (Max) :

3/Contact(A)

Mounting Angle :

Straight

Number of Rows :

1 Row

Application :

Signal

Contact Material :

Brass

Mating Post Length :

3.5 mm

Number of Positions :

7 Position

Tradename :

Mini-SPOX

Pitch :

2.5 mm

Series :

5267

Product Type :

Headers and Wire Housings

Number of Contact Rows :

1

Manufacturer :

Molex

Flammability Rating :

UL 94 V-0

Product Status :

Active

Product :

Headers

Contact Plating :

TIN OVER COPPER

Voltage Rating Max :

250V

Orientation :

Vertical

Termination Method :

Solder

Accessory Type :

-

Body Orientation :

Straight

Housing Color :

Natural

Product Height (mm) :

5.9(mm)

RoHS Status :

RoHS Compliant

Current Rating :

3 A

Contact Gender :

Pin (Male)

Termination Style :

Solder Pin

Type :

Shrouded Header

Gender :

HDR

Number of Contacts :

7(POS)

Row Spacing :

-

Pitch (mm) :

2.5(mm)

Voltage Rating :

250 V

Flammability :

94V-0

Contact Resistance Max :

20(mohm)

Termination Post Length :

3.5 mm

Product Length (mm) :

19.9(mm)

Brand :

Molex

Mounting Style :

Through Hole

Minimum Operating Temperature :

- 40 C
