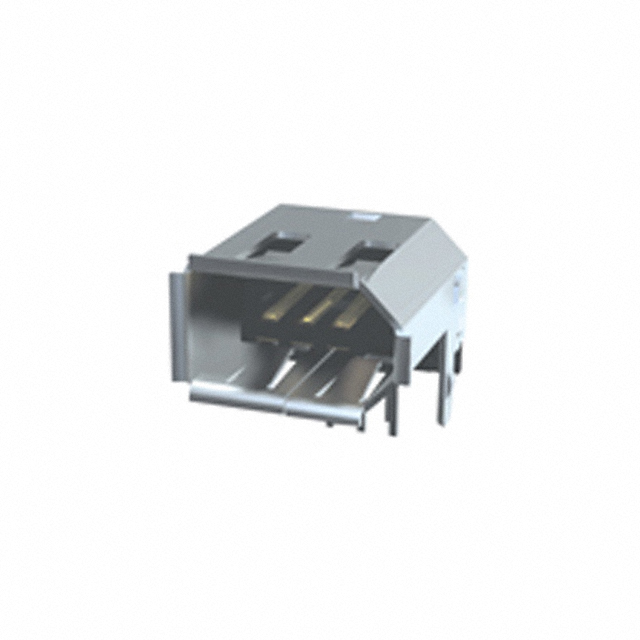

929

Manufacturer :

Keystone Electronics Corp.

Product Category :

USB, DVI, HDMI Connector Assemblies

RoHS Status :

ROHS3 Compliant

Polarization Key :

POLARIZED HOUSING

Plating Thickness :

FLASH inch

REACH SVHC :

No SVHC

Body Breadth :

0.327 inch

Shell Material :

P-CUSN

Insertion Force-Max :

5.7824 N

Factory Lead Time :

6 Weeks

Reliability :

COMMERCIAL

Mounting Feature :

Horizontal

Packaging :

Bulk

Number of Contacts :

6

Material Flammability Rating :

UL94 V-0

Width :

14.5mm

Dielectric Withstanding Voltage :

750VAC V

Mounting Type :

Through Hole, Right Angle

Mating Cycles :

1500

Reference Standard :

UL

Length :

13.5mm

Contact Material :

Bronze

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Operating Temperature :

0°C~40°C

Flammability Rating :

UL94 V-0

Number Of PCB Rows :

2

Current Rating (Amps) :

1A

Housing Material :

Plastic

Gender :

Receptacle

Height :

8.31mm

PCB Contact Pattern :

STAGGERED

Number of Conductors :

ONE

Number of Ports :

1

Termination :

Solder

Shielding :

Unshielded

Connector Type :

Firewire (IEEE 1394)

Contact Finish :

Gold

Feature :

Board Guide

Voltage - Rated :

30VAC

Shell/Shielding Material :

Steel

Mount :

Horizontal, Through Hole
