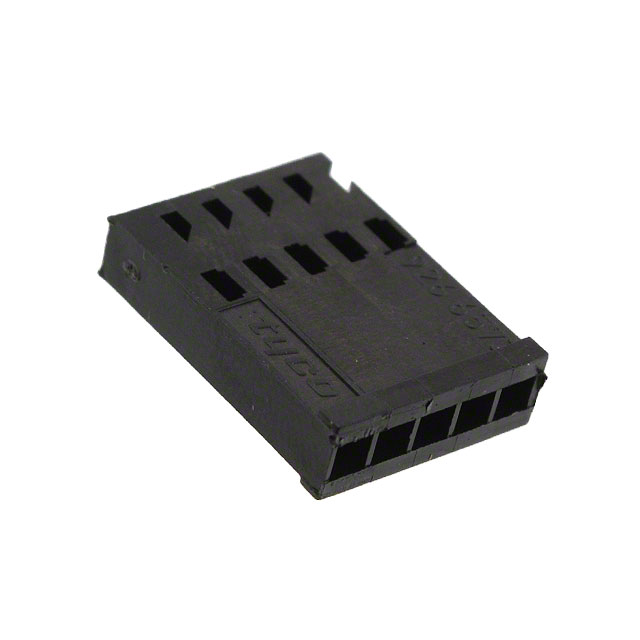

926657-5

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Housings

Mixed Contacts :

No

Termination Style :

Crimp

Product Category :

Headers and Wire Housings

No. of rows :

1

Number of Rows :

1

Industrial packaging :

No

Reach Compliance Code :

Compliant

Connection :

Crimp

Housing Color :

Black

Product Type :

Headers and Wire Housings

Tradename :

AMPMODU

Contact Type :

Socket (Female)

CS :

2.54mm

For Use With :

AMPMODU Series Socket Contatcs

Product Height (mm) :

17.8(mm)

Height :

13.16mm

Housing Gender :

Receptacle

Case material :

Polyester

Manufacturer part # :

926657-5

Series :

AMPMODU

Filter Feature :

No

Nominal current - rounded value :

3A

Maximum Operating Temperature :

+ 105 C

Pbfree Code :

yes

Content :

1pc(s)

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Nominal current :

3A

Total number of pins :

5

Subcategory :

Headers and Wire Housings

Pin shape :

Square

Connector contact surface :

Tin plated

Pitch (mm) :

2.54(mm)

DIN Conformance :

No

Mounting Style :

Cable Mount / Free Hanging

Product Length (mm) :

13.16(mm)

Pitch :

2.54mm

Packaging :

Box

IEC Conformance :

No

Brand Name :

AMP

Contact Gender :

FEMALE

Connector Type :

BOARD CONNECTOR

Gender :

RCP

Mounting Type :

CABLE

Number of Contact Rows :

1

Minimum Operating Temperature :

- 65 C

Width :

17.8mm

Type :

AMPMODU

Application :

Wire-to-Board

Housing Material :

PBT

Contact Material :

NOT SPECIFIED

UL Flammability Code :

94V-0

Option :

GENERAL PURPOSE

Body Orientation :

Straight

Number of Contacts :

5(POS)

Pins per row :

5

Additional Feature :

AMPMODU, COMPATIBLE CONTACTS: 87190-1; 87191-1; 87190-2; 867052-2; 926963-2

Brand :

TE Connectivity

Product Depth (mm) :

4.5(mm)

Factory Lead Time :

13 Weeks, 1 Day

Total Number of Contacts :

5

Product :

Wire Housings

Dim :

(L x W x H) 4.5 x 17.8 x 13.16 mm

MIL Conformance :

No

Length :

4.5mm

RoHS :

Details

Number of Positions :

5 Position
