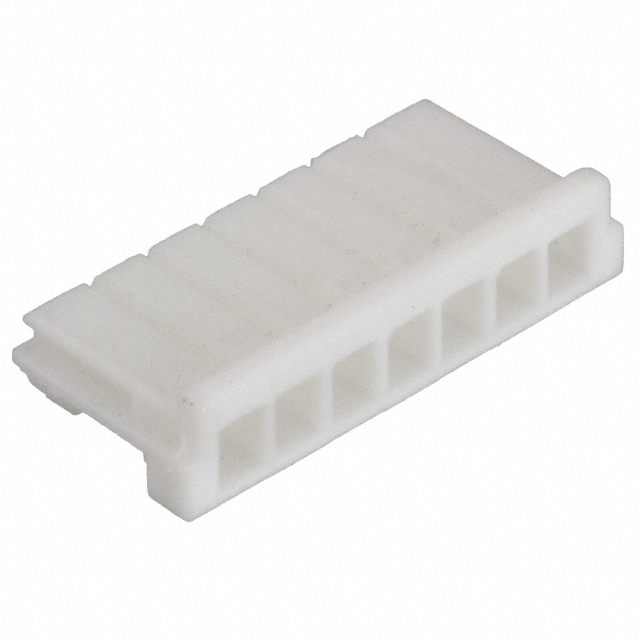

92009-7

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Housings

IEC Conformance :

No

Option :

GENERAL PURPOSE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Wire/Cable Gauge :

22 AWG

Mating Retention :

With

Orientation :

Straight

Durability :

50 Cycles

Pitch :

0.098 2.50mm

Contact Termination :

Crimp

Flammability Rating :

UL94 V-0

Insulation Diameter-Min :

0.039 inch

Color :

Natural

Length :

20mm

MIL Conformance :

No

Factory Lead Time :

13 Weeks

Total Number of Contacts :

7

UL Flammability Code :

94V-0

Contact Type :

Female Socket

RoHS Status :

RoHS Compliant

Sealable :

No

Min Operating Temperature :

-25°C

Number of Rows :

1

Polarization Key :

POLARIZED HOUSING

Operating Supply Voltage :

250V

ELV :

Compliant

Contact Current Rating :

3A

Connector Type :

Receptacle

Mount :

Cable, Free Hanging

HTS Code :

8536.69.40.40

Published :

1998

Current Rating :

3A

Wire Size (Min) :

30 AWG

Mixed Contacts :

No

Note :

Contacts Not Included

Contact Material :

Bronze

Rated Current (Signal) :

3A

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Gender :

FEMALE

Filter Feature :

No

Max Operating Temperature :

105°C

Packaging :

Bulk

Series :

MIS

Contact Resistance :

20mOhm

Height :

4.4958mm

Reference Standard :

UL

Lead Free :

Not Applicable

Contact Design :

PREASSEM CONN

DIN Conformance :

No

ECCN Code :

EAR99

Housing Material :

Nylon

Pbfree Code :

yes

Lifecycle Status :

ACTIVE (Last Updated: 5 months ago)

Mounting Type :

Free Hanging (In-Line)

Number of Positions :

7
