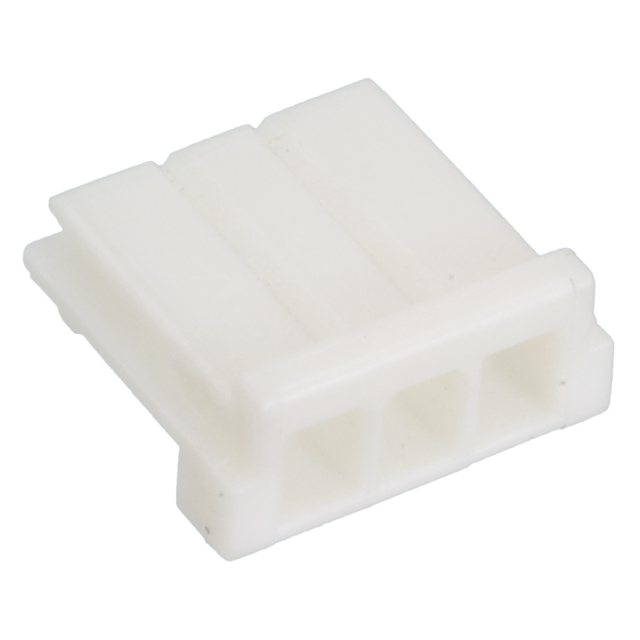

92009-3

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Housings

ECCN Code :

EAR99

Published :

1997

Current Rating :

3A

Pitch :

0.098 2.50mm

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Total Number of Contacts :

3

ELV :

Compliant

Depth :

9.6mm

Number of Positions :

3

Mixed Contacts :

No

Max Operating Temperature :

105°C

Length :

9.9822mm

Option :

GENERAL PURPOSE

Contact Termination :

Crimp

Contact Design :

PREASSEM CONN

IEC Conformance :

No

Connector Type :

Receptacle

Number of Rows :

1

Filter Feature :

No

Mating Retention :

With

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Housing Material :

Nylon

Gender :

FEMALE

Orientation :

Straight

Lifecycle Status :

ACTIVE (Last Updated: 1 week ago)

Pbfree Code :

yes

Operating Supply Voltage :

250V

Packaging :

Bulk

Rated Current (Signal) :

3A

Min Operating Temperature :

-25°C

Contact Material :

Bronze

Contact Current Rating :

3A

Max Voltage Rating (AC) :

250V

RoHS Status :

RoHS Compliant

Contact Type :

Female Socket

Durability :

50 Cycles

Factory Lead Time :

11 Weeks

Height :

4.4958mm

DIN Conformance :

No

Contact Resistance :

20mOhm

Polarization Key :

POLARIZED HOUSING

Sealable :

No

Color :

Natural

MIL Conformance :

No

Series :

MIS

Lead Free :

Not Applicable

Flammability Rating :

UL94 V-0

Note :

Contacts Not Included

Mounting Type :

Free Hanging (In-Line)

Wire/Cable Gauge :

22 AWG

Mount :

Cable, Free Hanging

Reference Standard :

UL

UL Flammability Code :

94V-0
