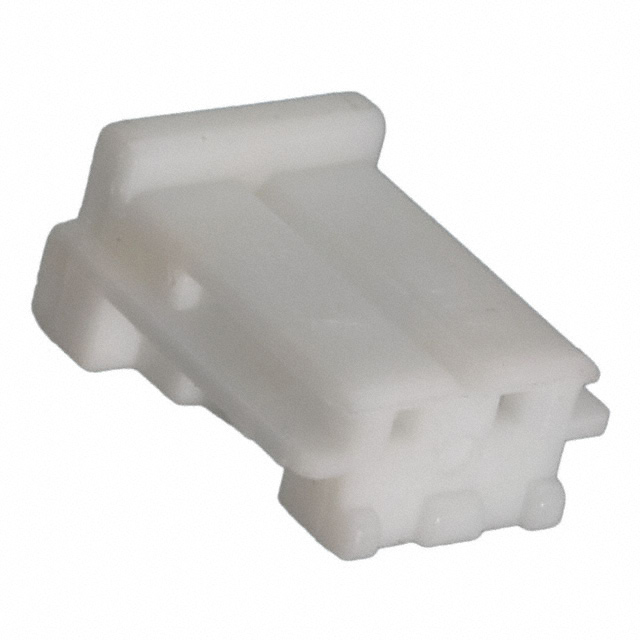

92009-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Housings

Mounting Type :

Free Hanging (In-Line)

Current Rating :

3A

Reference Standard :

UL

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Max Operating Temperature :

105°C

Contact Design :

PREASSEM CONN

Factory Lead Time :

13 Weeks

Contact Type :

Female Socket

Polarization Key :

POLARIZED HOUSING

Housing Material :

Nylon

Contact Material :

Bronze

Orientation :

Straight

Mixed Contacts :

No

ELV :

Compliant

Contact Termination :

Crimp

Color :

Natural

Flammability Rating :

UL94 V-0

Filter Feature :

No

Note :

Contacts Not Included

Published :

1998

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Lead Free :

Not Applicable

MIL Conformance :

No

Series :

MIS

Operating Supply Voltage :

250V

Max Voltage Rating (AC) :

250V

Number of Positions :

2

Min Operating Temperature :

-25°C

Contact Current Rating :

3A

Packaging :

Bulk

Wire Size (Min) :

30 AWG

ECCN Code :

EAR99

RoHS Status :

RoHS Compliant

Gender :

FEMALE

Height :

4.4958mm

DIN Conformance :

No

IEC Conformance :

No

UL Flammability Code :

94V-0

HTS Code :

8536.69.40.40

Pitch :

0.098 2.50mm

Connector Type :

Receptacle

Insulation Diameter-Min :

0.039 inch

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Rows :

1

Pbfree Code :

yes

Sealable :

No

Length :

7.493mm

Total Number of Contacts :

2

Wire/Cable Gauge :

22 AWG

Mating Retention :

With

Depth :

9.6mm

Option :

GENERAL PURPOSE

Durability :

50 Cycles

Rated Current (Signal) :

3A

Mount :

Cable, Free Hanging
