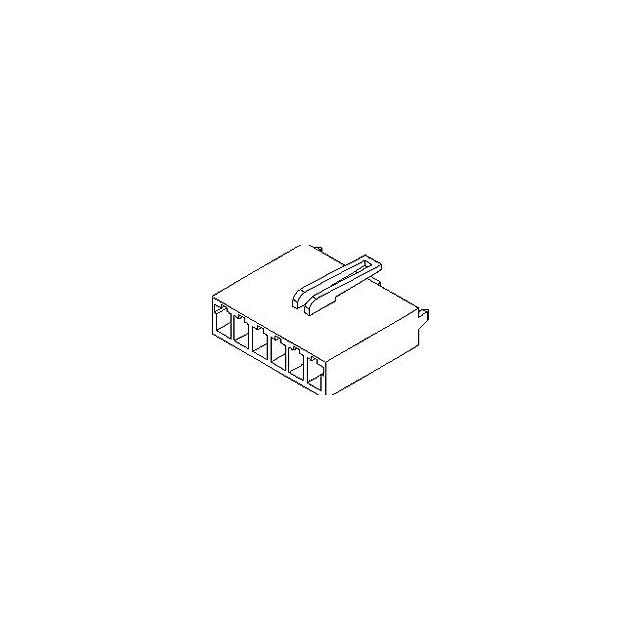

90331-1007

Manufacturer :

Molex

Product Category :

Unclassified

Filter Feature :

No

Wire Gauge :

18-24(AWG)

Mounting Type :

CABLE

Gender :

F

Reach Compliance Code :

Compliant

Voltage Rating Max :

250V

ECCN Code :

EAR99

Housing Color :

Natural

Body Depth :

0.772 inch

Pitch (mm) :

3.96(mm)

Contact Pattern :

RECTANGULAR

HTS Code :

8536.69.40.30

Reference Standard :

CSA, UL

Subcategory :

Headers and Edge Type Connectors

Number of Contact Rows :

1

Operating Temp Range :

-40C to 85C

Insulation Resistance :

500000000 Ω

Body/Shell Style :

PLUG

Termination Type :

Crimp

Insulator Color :

Natural

Mating Contact Pitch :

0.156 inch

Factory Lead Time :

13 Weeks

Manufacturer :

Molex

IEC Conformance :

No

Contact Gender :

FEMALE

MIL Conformance :

No

Shell Material :

POLYAMIDE66

Empty Shell :

No

Number of Contacts :

6(POS)

Package :

Bulk

Mounting Option 1 :

LOCKING MECH

Reliability :

COMMERCIAL

Product Depth (mm) :

11.1(mm)

Additional Feature :

COMPATIBLE CONTACTS: 08-50-0277; 08-50-0276, POLARIZED

Type :

Housing

Series :

*

Body Orientation :

Straight

Product Length (mm) :

23.67(mm)

DIN Conformance :

No

UL Flammability Code :

94V-0

Product Height (mm) :

19.6(mm)

Polarization Key :

POLARIZED HOUSING

Total Number of Contacts :

6

Current Rating (Max) :

4/Contact(A)

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Mixed Contacts :

No

Packaging :

Bag

Housing Material :

Nylon 6/6

Option :

GENERAL PURPOSE

Product Status :

Active

Connector Type :

RECTANGULAR POWER CONNECTOR
