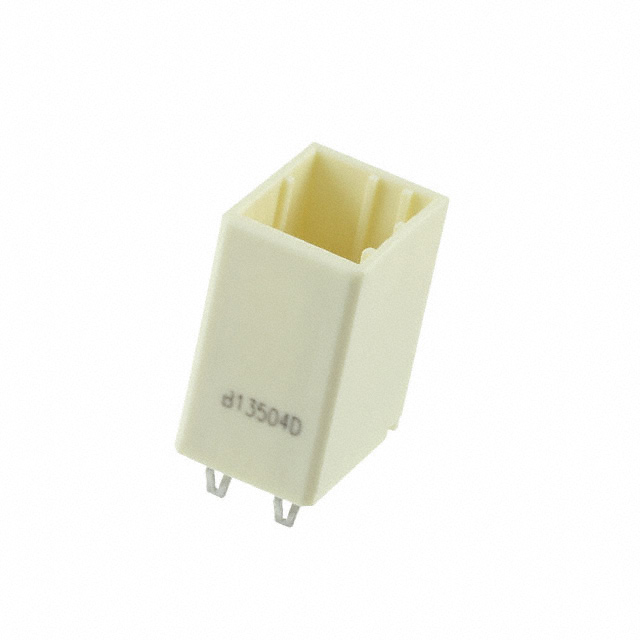

9-1318124-2
Or copy the link below:
- Mfr.Part #
- 9-1318124-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 6POS 2.5MM
- Stock
- 17,112
- In Stock ：
- 17,112
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Fastening Type :
- Detent Lock
- Row Spacing - Mating :
- 0.148 (3.75mm)
- Number of Positions Loaded :
- All
- Insulation Height :
- 0.700 17.78mm
- Style :
- Board to Board or Cable
- Approval Agency :
- UL
- Contact Retention :
- Without
- Flammability Rating :
- UL94 V-0
- RoHS Status :
- RoHS Compliant
- Number of Rows :
- 2
- Contact Type :
- Tab
- PCB Mounting Orientation :
- Vertical
- Termination :
- Solder
- Shrouding :
- Shrouded - 4 Wall
- Published :
- 2011
- Contact Shape :
- RECTANGULAR
- Series :
- Dynamic D-2100
- Material Flammability Rating :
- UL94 V-0
- Max Operating Temperature :
- 221°C
- PCB Thickness :
- 1.6002mm
- Shielding :
- Unshielded
- Mating Retention :
- With
- Current Rating :
- 5A
- Contact Finish - Mating :
- Gold
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Housing Color :
- Natural
- Pitch :
- 2.4892mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Orientation :
- Straight
- Feature :
- Board Lock
- Current Rating (Amps) :
- 5A
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- Pitch - Mating :
- 0.098 2.50mm
- Packaging :
- Tube
- Number of Positions :
- 6
- Housing Material :
- Polyester
- Length - Tail :
- 3.4036mm
- Contact Style :
- Straight
- Mounting Type :
- Through Hole
- Insulation Color :
- Natural
- Mount :
- Through Hole
- Number of Contacts :
- 6
- Height :
- 17.79mm
- Contact Length - Post :
- 0.134 3.40mm
- Sealable :
- No
- Contact Plating :
- Gold
- ELV :
- Compliant
- Factory Lead Time :
- 18 Weeks
- Mating Alignment :
- With
- Contact Material :
- COPPER ALLOY
- VDE Tested :
- No
- Width :
- 13.1826mm
- PCB Mount Retention :
- With
- Min Operating Temperature :
- -67°C
- Connector Type :
- Header
- Operating Temperature :
- -55°C~105°C
- Gender :
- Male
- Length :
- 10.1854mm
- Radiation Hardening :
- No
- Halogen Free :
- Halogen Free
- Contact Finish - Post :
- Tin
- Applications :
- General Purpose, Industrial
- Voltage - Rated :
- 250V
- Preloaded :
- yes
- Operating Supply Voltage :
- 250V
- Insulation Material :
- Thermoplastic, Polyester, Glass Filled
- Contact Current Rating :
- 5A
- Datasheets
- 9-1318124-2
Dynamic D-2100 Series 2-Row Header Solder Copper Alloy Tube Through Hole Gold Thermoplastic, Polyester, Glass Filled 6-Position Board to Board or Cable 0.700 17.78mm Height
9-1318124-2 Overview
This product is packaged in a Header box.Through Hole indicates that the device is mounted.An Tube case is utilized for packaging the product.The product is a part of the Dynamic D-2100 Series.Use it below 221°C.A minimum temperature of -67°C must be maintained for the operation of this device.There is the possibility of using the device for General Purpose, Industrial.In many ways, Board Lock makes it more powerful.By Through Hole, the part is mounted.The operating voltage of this memory is 250V.Operating temperature is set to -55°C~105°C.
9-1318124-2 Features
Dynamic D-2100 series
9-1318124-2 Applications
There are a lot of TE Connectivity AMP Connectors
9-1318124-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
